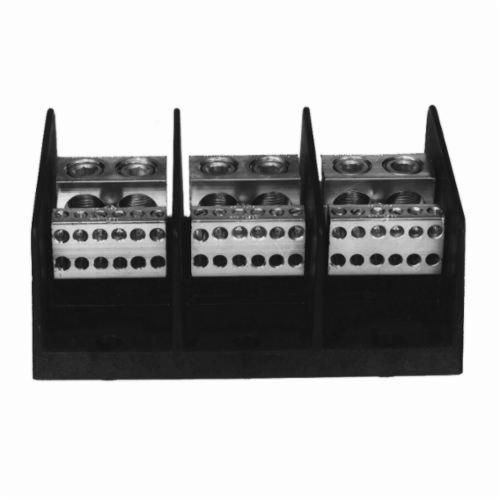

ILSCO® ClearChoice® PDB-11-2/0-3 Type PDB Mechanical Medium Power Distribution Block, 600 VAC, 175 A, 3 Poles, 14 to 2/0 AWG Wire, Aluminum Alloy
ILSCO® ClearChoice® PDB-11-2/0-3 Type PDB Mechanical Medium Power Distribution Block, 600 VAC, 175 A, 3 Poles, 14 to 2/0 AWG Wire, Aluminum Alloy
SKU: ILSPDB-11-2/0-3
Manufacturer Part Number: PDB-11-2/0-3
UPC: 783669710779
Features
- Multiple taps - Depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - Provides tapping flexibility over a broad wire range
- Valox insulating base - Provides a high degree of impact resistance with superior insulating qualities
- Electro-tin plated - Provides low contact resistance
- Dual rated for copper and aluminum conductor except for pdbu-55-600-1 and pdb-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - Suitable for use with either copper or aluminum conductors
- UL Recognized rated 90 deg C and is CSA Certified, rated for 600 volts - Ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- 3/16 in hex primary, 3/16 in hex secondary
- 14 - 2/0 AWG primary/secondary
- 90 deg C temperature
- Medium size
- (1) Box lug primary, (1) Box lug secondary
- Electro tin plated
Specification
| Material | Aluminum |
|---|---|
| Number Of Poles | 3 |
| Amperage Rating | 175 A |
| Dimensions | 5 in L x 4 in W x 2-5/8 in H |
| Voltage Rating | 600 VAC |
| Application | Tap Connector |
| Color | Black |
| Finish | Tin Plated |
| Primary Connections/Pole | 1 |
| Secondary Connection/Pole | 1 |
| Short Circuit Current Rating | 10 kA |
| Standard & Approvals | CSA File No. LR-29601 Certified, RoHS Complaint, UL 1059, 1953, UL File No. E84782, E112158, 486A/B Listed |
