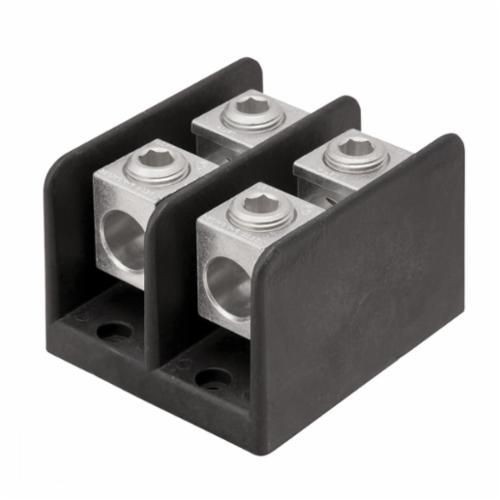

ILSCO® ClearChoice® PDB-22-350-1 Type PDB Dual Rated Power Distribution Block, 600 VAC, 620 A, 1 Pole, 6 AWG to 350 kcmil Wire, Aluminum Alloy
ILSCO® ClearChoice® PDB-22-350-1 Type PDB Dual Rated Power Distribution Block, 600 VAC, 620 A, 1 Pole, 6 AWG to 350 kcmil Wire, Aluminum Alloy
SKU: ILSPDB-22-350-1
Manufacturer Part Number: PDB-22-350-1
UPC: 783669710977
Features
- Multiple taps - Depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - Provides tapping flexibility over a broad wire range
- Valox insulating base - Provides a high degree of impact resistance with superior insulating qualities
- Electro-tin plated - Provides low contact resistance
- Dual rated for copper and aluminum conductor except for pdbu-55-600-1 and pdb-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - Suitable for use with either copper or aluminum conductors
- UL Recognized rated 90 deg C and is CSA Certified, rated for 600 volts - Ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- 3/8 in hex primary, 3/8 in secondary
- 6 AWG - 350 kcmil primary, 6 AWG - 350 kcmil secondary
- 90 deg C temperature
- Block L
- (2) Box lug primary, (2) Box lug secondary
- Electro tin plated
Specification
| Material | Aluminum |
|---|---|
| Number Of Poles | 1 |
| Primary Connections/Pole | 2 |
| Secondary Connection/Pole | 2 |
| Short Circuit Current Rating | 10 kA |
| Type | Type PDB |
| Voltage Rating | 600 VAC |
| Wire Size | 6 AWG to 350 kcmil |
| Application | Tap Connector |
| Standard & Approvals | CSA File No. LR-29601 Certified, RoHS Compliant, UL 1059, UL File No. E84782 Listed |
| Amperage Rating | 620 A |
| Dimensions | 3 in L x 5-1/2 in W x 3-1/2 in H |
| Color | Black |
| Finish | Tin Plated |
