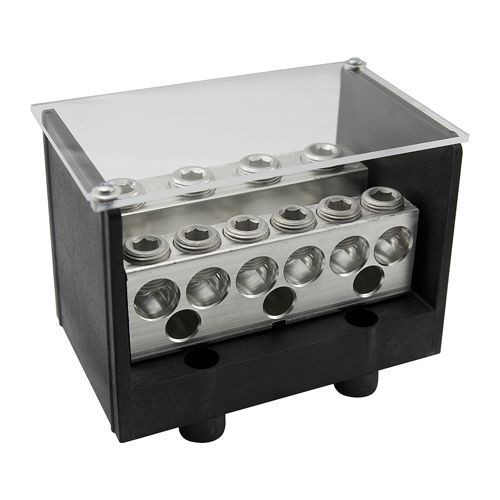

ILSCO® ClearChoice® PDB-55-500-1 Type PDB Dual Rated Mechanical Power Distribution Block, 600 VAC, 1600 A, 1 Pole, 3/0 AWG to 500 kcmil Wire, Aluminum Alloy
ILSCO® ClearChoice® PDB-55-500-1 Type PDB Dual Rated Mechanical Power Distribution Block, 600 VAC, 1600 A, 1 Pole, 3/0 AWG to 500 kcmil Wire, Aluminum Alloy
SKU: ILSPDB-55-500-1
Manufacturer Part Number: PDB-55-500-1
UPC: 783669711554
Documents
Features
- Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains
- Range taking - provides tapping flexibility over a broad wire range
- Electro tin plated provides low contact resistance
- Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only
- Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors
- UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability
- Provides low contact resistance
- Suitable for use with either copper or aluminum conductors
- Ensures reliability
- Range taking for reduced inventories and flexibility
- 3/8 in hex primary, 3/8 in hex secondary
- 90 deg C temperature rating
- Block W
- (5) box lug primary, (5) box lug secondary
- 3/0 AWG to 500 kcmil primary and secondary wire size
- Valox® insulating base
- UL assigned short circuit current rating
- Provides great flexibility in using the connector as an in-line splice or to reduce conductor size
- Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1
Specification
| Material | Aluminum Alloy |
|---|---|
| Number Of Poles | 1 |
| Primary Connections/Pole | 5 |
| Secondary Connection/Pole | 5 |
| Short Circuit Current Rating | 10 kA |
| Type | Type PDB Dual Rated Mechanical |
| Voltage Rating | 600 VAC |
| Wire Size | 3/0 AWG to 500 kcmil |
| Application | Tap Connector Applications |
| Standard & Approvals | CSA File No. LR29601, UL 1059, UL 486A-B File No. E84782/E112158, ECCN EAR99, PROP65: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Amperage Rating | 1600 A |
| Color | Black |
| Finish | Electro-Plated Tin |
| Dimensions | 6-7/32 in L x 4 in W x 4-3/8 in H |
