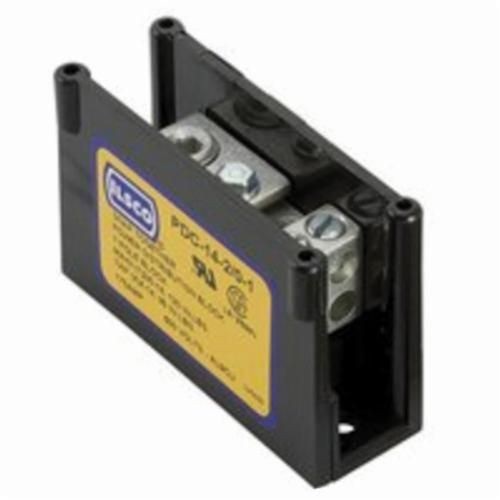

ILSCO® ClearChoice® PDC-14-2/0-1 Type PDC Dual Rated Small Power Distribution Block, 600 VAC, 175 A, 1 Pole, 14 to 2/0 AWG, 14 to 4 AWG Wire, Aluminum Alloy
ILSCO® ClearChoice® PDC-14-2/0-1 Type PDC Dual Rated Small Power Distribution Block, 600 VAC, 175 A, 1 Pole, 14 to 2/0 AWG, 14 to 4 AWG Wire, Aluminum Alloy
SKU: ILSPDC-14-2/0-1
Manufacturer Part Number: PDC-14-2/0-1
UPC: 783669711288
Documents
Features
- Modular design - Simplifies stocking. Combines any number of blocks with multiple conductor ranges into the specific configuration required for the job
- Easy to assemble - Unique locking feature allows individual blocks to be combined quickly without special tools
- UL Recognized 90 deg C 600 Volts and is CSA Certified - Ensures reliability
- Electro-tin plated - Provides low contact resistance
- Lexan insulating base - Provides a high degree of impact resistance with superior insulating qualities
- Manufactured from high strength 6061-T6 aluminum alloy - Suitable for use with either copper or aluminum conductors
- PDA's are added to PDC to obtain a multi pole block
- 2/0 - 14 AWG primary, 4 - 14 AWG secondary
- 90 deg C Temperature
- (1) Box lug primary, (4) Box lug secondary
- Electro tin plated
Specification
| Material | Aluminum |
|---|---|
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 175 A |
| Color | Black |
| Finish | Tin Plated |
| Primary Connections/Pole | 1 |
| Secondary Connection/Pole | 4 |
| Short Circuit Current Rating | 10 kA |
| Voltage Rating | 600 VAC |
| Dimensions | 1.05 in L x 1.94 in W x 2.88 in H |
| Catalog ID | ILSPDC-14-2/0-1 |
| Video | https://www.youtube.com/watch?v=iSKMnUv95Wk |
| Standard & Approvals | CSA File No. LR-29601 Certified, RoHS Complaint, UL 1953, UL File No. E84782 Listed |
| Application | Tap Connector |
| Wire Size | 14 to 2/0 AWG/14 to 4 AWG |
| Type | Type PDC |
