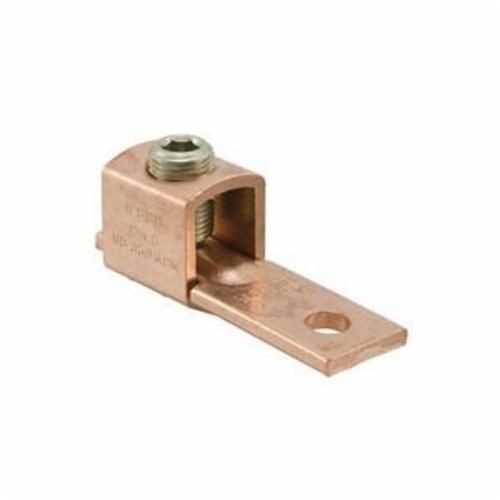

ILSCO® ClearChoice® SLS-300 1-Conductor Compact Mechanical Lug, 1/0 AWG to 350 kcmil Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Copper
ILSCO® ClearChoice® SLS-300 1-Conductor Compact Mechanical Lug, 1/0 AWG to 350 kcmil Copper Conductor, 3/8 in Stud, 1 Bolt Holes, Copper
SKU: ILSSLS-300
Manufacturer Part Number: SLS-300
UPC: 783669824520
Documents
Features
- Re-usable
- Suitable for use in circuits rated 35kV or less, Proper high voltage spacing and insulation techniques must be used
- Range taking for reduced inventories and flexibility
- Manufactured from electrolytic copper tubing and strip stock
- Provides maximum conductivity and strength
- Ensures reliability for copper conductor
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- V-bottom collar
- 1 stud of 3/8 in
- 18/Pack, Standard Package
Specification
| Material | Copper |
|---|---|
| Number of Bolt Holes | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=SXIDc-w-v9U&t=6s |
| Catalog ID | ILSSLS-300 |
| Conductor Size | 350 kcmil to 1/0 AWG |
| Conductor Type | Copper |
| Dimensions | 3-3/16 in L x 1 in W |
| Series | SLS |
| Specifications | 5/16 in Hex, Socket Screw |
| Stud Size | 3/8 in |
| Temperature Rating | 90 deg C |
| Tongue Size | 1.5 in L x 1 in W x 0.187 in T |
| Tongue Style | Straight |
| Type | Compact |
| Voltage Rating | 2000 VAC |
| Application | For Terminating Connector |
| Standard & Approvals | CSA Certified, RoHS Compliant, UL 486A/B, UL E6207 Listed |
