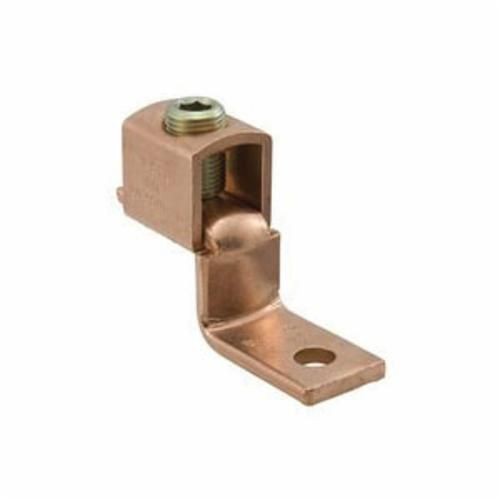

ILSCO® ClearChoice® SLU-35DB 1-Conductor Compact Mechanical Lug, 14 to 6 AWG Copper Conductor, #10 Stud, 1 Bolt Holes, Copper
ILSCO® ClearChoice® SLU-35DB 1-Conductor Compact Mechanical Lug, 14 to 6 AWG Copper Conductor, #10 Stud, 1 Bolt Holes, Copper
SKU: ILSSLU-35DB
Manufacturer Part Number: SLU-35DB
UPC: 783669829655
Documents
Features
- Re-usable
- Suitable for use in circuits rated 35kV or less, Proper high voltage spacing and insulation techniques must be used
- Range taking for reduced inventories and flexibility
- Manufactured from electrolytic copper tubing and strip stock
- Provides maximum conductivity and strength
- Ensures reliability for copper conductor
- Compact design saves space and reduces installation time
- Wires are wedged between arched pressure bar and collar establishing positive contact and firm permanent grip
- V-bottom collar
- Suitable for direct burial in earth or concrete and are UL467 rated
- 1 stud of NO 10
- 6 - 14 AWG and A - UL listed combinations (2) 10 STR. or (2) 12 STR. or (2) 14 STR. or (1) 12 STR. and (1) 14 STR. or (1) 10 STR and (1) 12 STR
- 100/Pack, Standard Package
Specification
| Material | Copper |
|---|---|
| Number of Bolt Holes | 1 |
| Series | SLU |
| Specifications | Slotted Hex |
| Stud Size | NO 10 |
| Temperature Rating | 90 deg C |
| Tongue Size | 0.4688 in L x 3/8 in W |
| Tongue Style | Offset |
| Type | Compact |
| Voltage Rating | 2000 VAC |
| Application | For Terminating Connector |
| Standard & Approvals | CSA Certified, RoHS Compliant, UL 486A/B, UL E6207 Listed |
| Conductor Size | 6 to 14 AWG |
| Dimensions | 1-3/16 in L x 3/8 in W |
| Conductor Type | Copper |
