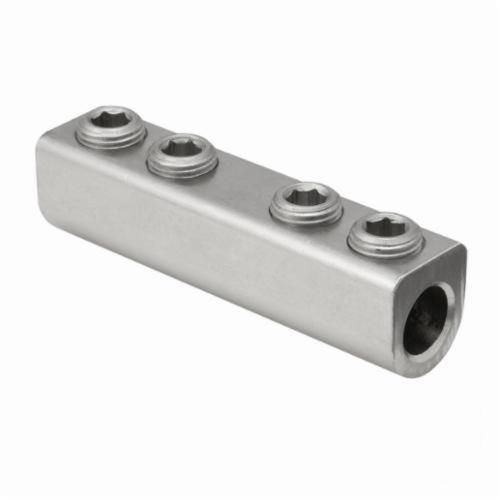

ILSCO® ClearChoice® SPA-750 Type SPA Dual Rated Splicer/Reducer, 250 to 750 kcmil Aluminum/Copper Conductor, 4 Screws, Aluminum
ILSCO® ClearChoice® SPA-750 Type SPA Dual Rated Splicer/Reducer, 250 to 750 kcmil Aluminum/Copper Conductor, 4 Screws, Aluminum
SKU: ILSSPA-750
Manufacturer Part Number: SPA-750
UPC: 783669857108
Features
- Manufactured from high-strength 6061-T6 aluminum alloy
- Flat bottoms
- Electro-tin plated provides low contact resistance
- Chamfered wire entry provides ease of installation
- Solid wire stop in center prevents dissimilar metals coming into contact
- Large screw diameters ensures all wire strands are held securely
- 1/Pack
Specification
| Material | Aluminum |
|---|---|
| Number of Screws | 4 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=SXIDc-w-v9U&t=6s |
| Catalog ID | ILSSPA-750 |
| Conductor Size | 750 to 250 kcmil |
| Conductor Type | Aluminum/Copper |
| Dimensions | 5-7/16 in L x 1-3/8 in W x 1-3/4 in H |
| Finish | Electro-Tin Plated |
| Series | SPA |
| Specifications | 3/8 in Hex Size, 15/16 in Screw Dia |
| Temperature Rating | 90 deg C |
| Type | Dual Rated |
| Voltage Rating | 2000 VAC |
| Application | For Aluminum or Copper Conductors |
| Standard & Approvals | LR-29601 CSA Certified, UL 453G, UL 486A-B, UL E6207 Listed |
