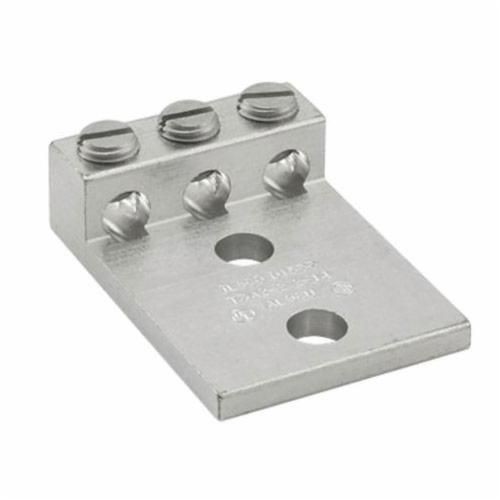

ILSCO® ClearChoice® T3A2-250N 3-Conductor Dual Rated Mechanical Terminal Lug, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 1/2 in Stud, 3 Bolt Holes, 6061-T6 Aluminum Alloy
ILSCO® ClearChoice® T3A2-250N 3-Conductor Dual Rated Mechanical Terminal Lug, 6 AWG to 250 kcmil Aluminum/Copper Conductor, 1/2 in Stud, 3 Bolt Holes, 6061-T6 Aluminum Alloy
SKU: ILST3A2-250N
Manufacturer Part Number: T3A2-250N
UPC: 783669898309
Documents
Features
- Chamfered wire entry provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Must be mounted with a minimum of 2 bolts
- Manufactured from high strength 6061-T6 aluminum alloy
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- 2 stud of 1/2 in
- 1/Pack, Standard Package
Specification
| Material | Aluminum |
|---|---|
| Number of Bolt Holes | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Conductor Type | Aluminum/Copper |
| Finish | Electro-Tin Plated |
| Stud Size | 1/2 in |
| Tongue Style | Straight |
| Type | Dual Rated |
| Standard & Approvals | LR-29601 CSA Certified, RoHS Compliant, UL E6207, UL 486A-B Listed |
| Temperature Rating | 90 deg C |
| Tongue Size | 3 in L x 2.813 in W x 0.312 in T |
| Specifications | 5/16 in Hex, 1-3/4 in Mounting Hole Spacing |
| Series | T3A |
| Dimensions | 4 in L x 2.813 in W x 1.187 in H |
| Conductor Size | 250 kcmil to 6 AWG |
| Catalog ID | ILST3A2-250N |
| Application | For Terminating Connector |
| Voltage Rating | 2000 VAC |
