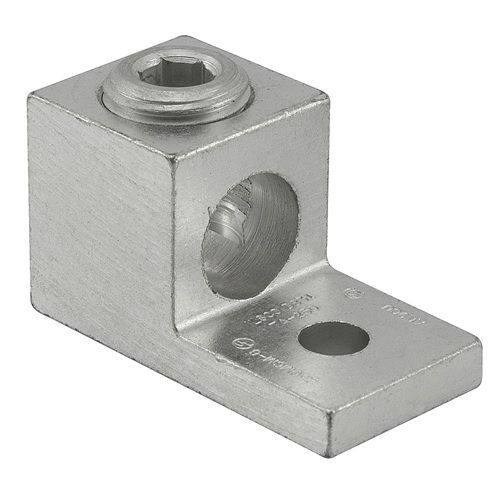

ILSCO® ClearChoice® TA-2/0 1-Conductor Dual Rated Mechanical Terminal Lug, 14 to 2/0 AWG Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy
ILSCO® ClearChoice® TA-2/0 1-Conductor Dual Rated Mechanical Terminal Lug, 14 to 2/0 AWG Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy
SKU: ILSTA-2/0
Manufacturer Part Number: TA-2/0
UPC: 783669177497
Documents
Features
- Chamfered wire entry provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Manufactured from high strength 6061-T6 aluminum alloy
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- 1 stud of 1/4 in
- 50/Pack, Standard Package
Specification
| Material | Aluminum |
|---|---|
| Number of Bolt Holes | 1 |
| Series | TA |
| Specifications | 3/16 in Hex |
| Stud Size | 1/4 in |
| Tongue Size | 0.843 in L x 0.625 in W x 0.187 in T |
| Tongue Style | Straight |
| Type | Dual Rated |
| Voltage Rating | 2000 VAC |
| Application | For Terminating Connector |
| Standard & Approvals | LR-29601 CSA Certified, RoHS Compliant, UL 453-G, UL 486A, UL 486B Listed |
| Conductor Size | 2/0 to 14 AWG |
| Dimensions | 1.4688 in L x 0.625 in W x 0.794 in H |
| Conductor Type | Aluminum/Copper |
| Finish | Electro-Tin Plated |
| Temperature Rating | 90 deg C |
