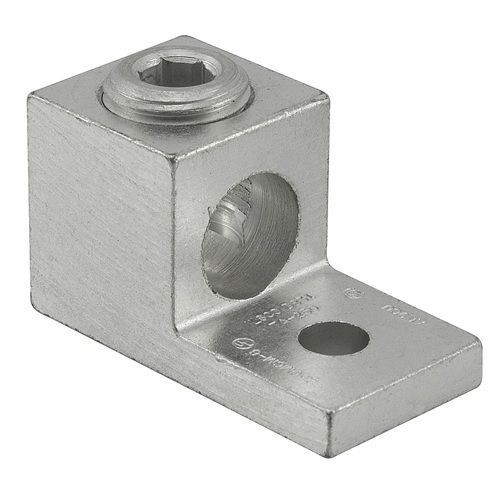

ILSCO® ClearChoice® TA-500 1-Conductor Dual Rated Mechanical Terminal Lug, 4 AWG to 500 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy
ILSCO® ClearChoice® TA-500 1-Conductor Dual Rated Mechanical Terminal Lug, 4 AWG to 500 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy
SKU: ILSTA-500
Manufacturer Part Number: TA-500
UPC: 783669891010
Features
- Chamfered wire entry provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Manufactured from high strength 6061-T6 aluminum alloy
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- 1 stud of 3/8 in
- 12/Pack, Standard Package
Specification
| Tongue Size | 1.594 in L x 1.5 in W x 0.312 in T |
|---|---|
| Material | Aluminum |
| Type | Dual Rated |
| Temperature Rating | 90 deg C |
| Series | TA |
| Tongue Style | Straight |
| Conductor Size | 500 kcmil to 4 AWG |
| Video | https://www.youtube.com/watch?v=SXIDc-w-v9U&t=6s |
| Conductor Type | Aluminum/Copper |
| Number of Bolt Holes | 1 |
| Stud Size | 3/8 in |
| Specifications | 1/2 in Hex |
| Finish | Electro-Tin Plated |
| Standard & Approvals | LR-29601 CSA Certified, RoHS Compliant, UL 453-G, UL 486A, UL 486B Listed |
| Dimensions | 2.8125 in L x 1.5 in W x 1.562 in H |
| Application | For Terminating Connector |
| Voltage Rating | 2000 VAC |
| Catalog ID | ILSTA-500 |
