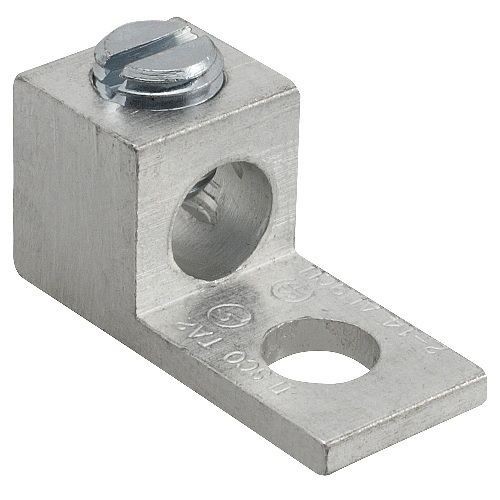

ILSCO® ClearChoice® TA-6-S 1-Conductor Dual Rated Mechanical Terminal Lug, 14 to 4 AWG Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy
ILSCO® ClearChoice® TA-6-S 1-Conductor Dual Rated Mechanical Terminal Lug, 14 to 4 AWG Aluminum/Copper Conductor, 1/4 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy
SKU: ILSTA-6-S
Manufacturer Part Number: TA-6-S
UPC: 783669888386
Features
- Chamfered wire entry provides ease of installation
- Suitable for use with either copper or aluminum conductors
- Manufactured from high strength 6061-T6 aluminum alloy
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- 1 stud of 1/4 in
- 100/Pack, Standard Package
Specification
| Material | Aluminum |
|---|---|
| Number of Bolt Holes | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Video | https://www.youtube.com/watch?v=SXIDc-w-v9U&t=6s |
| Conductor Size | 4 to 14 AWG |
| Conductor Type | Aluminum/Copper |
| Finish | Electro-Tin Plated |
| Series | TA |
| Specifications | Slotted Hex |
| Stud Size | 1/4 in |
| Tongue Style | Straight |
| Type | Dual Rated |
| Voltage Rating | 2000 VAC |
| Application | For Terminating Connector |
| Standard & Approvals | LR-29601 CSA Certified, RoHS Compliant, UL 453-G, UL 486A, UL 486B Listed |
| Temperature Rating | 90 deg C |
| Catalog ID | ILSTA-6-S |
| Tongue Size | 0.687 in L x 0.5 in W x 0.093 in T |
| Dimensions | 1-1/16 in L x 1/2 in W x 1/2 in H |
