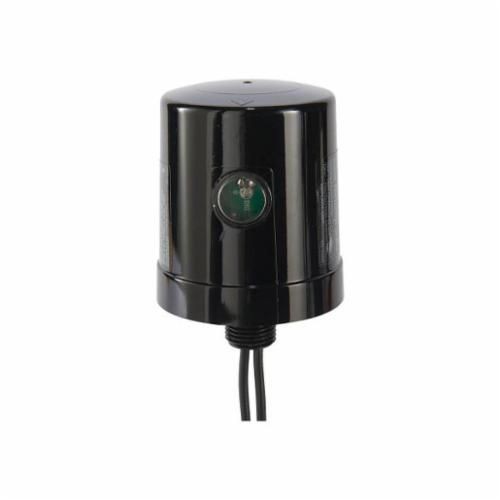

Intermatic® AG2401C3 Surge Protective Device, 120/240 VAC, 50/60 Hz, 1/2 Poles, 50 kA SCCR, 1 Phase
Intermatic® AG2401C3 Surge Protective Device, 120/240 VAC, 50/60 Hz, 1/2 Poles, 50 kA SCCR, 1 Phase
SKU: INTAG2401C3
Manufacturer Part Number: AG2401C3
UPC: 078275124431
Short Description
Features
- UV resistant
- Designed for a variety of Type 1 and Type 2 applications, Type 1 applications include outdoor installations before service entrances and utility meter cabinets, Type 2 applications include installations after service entrances
- State-of-the-art TPMOV® surge protection technology
- 18 in lead connection
- 3 mode of protection
- 1/2 in nominal nipple
- Green LED indicator
- Type 1 Type 2
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Indicator Type | LED |
| Material | Polycarbonate |
| Modes of Protection | L-L/L-G/L-N |
| Mounting Type | Panel |
| Nominal Discharge Current | 20 kA |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | INTAG2401C3 |
| Color | Black |
| Dimensions | 1/2 in H |
| Electrical Rating | 120/240 VAC |
| Enclosure Type | NEMA 1/2/4/4X |
| Environmental Conditions | -25 to 60 deg C Operating Temperature |
| Phase | 1 |
| Series | AG |
| Short Circuit Rating | 50 kA |
| Application | Outdoor Irrigation Equipment, Farm Equipment, Pumps, Lighting Fixtures, Traffic Signaling Devices, HVACR Controls and Motors |
| Standard & Approvals | UL 1449 3rd Edition, CSA Certified, RoHS Compliant |
| Number Of Poles | 1/2/2025 12:00:00 AM |
