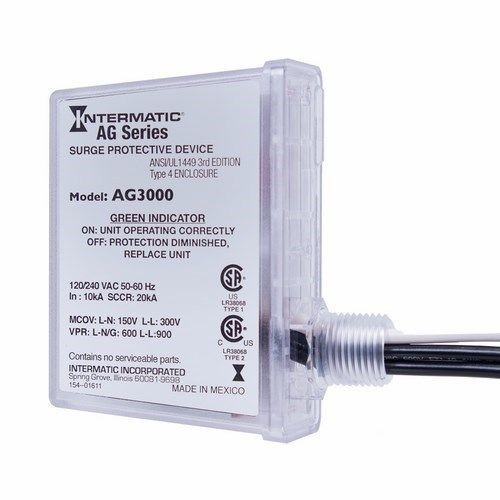

Intermatic® AG3000 Surge Protective Device, 120/240 VAC, 50/60 Hz, 3 Poles, 20 kA SCCR, 1 Phase

Selected AG3000Intermatic® AG3000 Surge Protective Device, 120/240 VAC, 50/60 Hz, 3 Poles, 20 kA SCCR, 1 Phase
AG3000Intermatic® AG3000 Surge Protective Device, 120/240 VAC, 50/60 Hz, 3 Poles, 20 kA SCCR, 1 Phase

Documents

Short Description

The AG series Surge Protective Devices (SPD) are designed for a variety of Type 1 and Type 2 applications. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. CSA listed to ANSI/UL1449 3rd edition, the AG series is approved for outdoor applications including: irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls and motors.

Features

  • UV resistant
  • Power surges are the silent killer for home appliances and HVAC equipment
  • State-of-the-art TPMOV® surge protection technology
  • 18 in lead connection
  • 3-mode of protection
  • Most homeowners protect their electronics, but leave more valued equipment unsecured
  • Green LED indicator
  • 1/2 in nominal nipple
  • Surges can wipe out equipment and leave you searching for answers

Specification

Frequency Rating
50/60 Hz
Material
Polycarbonate
Modes of Protection
L-N/L-L
Mounting Type
Surface
Number Of Poles
3
Phase
1
Short Circuit Current Rating
20 kA
Standard & Approvals
UL 1449 3rd Edition, CSA Certified, PROP65: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Nominal Discharge Current
10 kA
Environmental Conditions
-13 to 140 deg F Operating Temperature
Enclosure Type
NEMA 1/2/4X
Electrical Ratings
120/240 VAC
Dimensions
1/2 in H
Application
HVAC Equipment, Outdoor Irrigation Equipment, Farm Equipment, Pumps, Lighting Fixtures, Traffic Signaling Devices, HVACR Controls and Motors
Terminal Type
Lead
Series
AG Series
Indicator Type
Green LED
