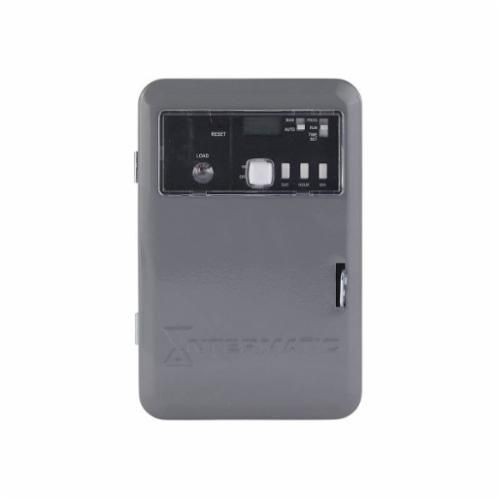

Intermatic® EH40 EH Series Electronic Water Heater Timer, 1 min to 7 days Setting, 240 VAC, 1-1/4 hp, 2NO/DPST Contact, 2 Poles

Selected EH10Intermatic® EH40 EH Series Electronic Water Heater Timer, 1 min to 7 days Setting, 240 VAC, 1-1/4 hp, 2NO/DPST Contact, 2 Poles
EH10Intermatic® EH40 EH Series Electronic Water Heater Timer, 1 min to 7 days Setting, 240 VAC, 1-1/4 hp, 2NO/DPST Contact, 2 Poles

Documents

Short Description

The EH Series Electronic Time Switches provide control for electric water heaters with to-the-minute accuracy in programming and time-keeping. The use of a water heater timer allows the customer to shift electricity use to "off-peak" time periods in an attempt to reduce utility costs. These time switches can be programmed for repeat daily scheduling, 5-day work week scheduling, weekend scheduling or individual day scheduling.

Features

  • Timers can be scheduled for operation during the lowest time-of-day rates
  • External override switch
  • LED load indicator
  • Battery carryover protects time keeping and program information for a minimum of 3 years
  • Digital/electrical mechanism
  • To-the-minute programming and time-keeping accuracy
  • Replaceable battery backup
  • 5 A at 120 VAC (tungsten), 30 A at 120 VAC (resistive), 30 A at 120 VAC (inductive)
  • 60 Hz
  • 42 ON/OFF events per week
  • Indoor enclosure

Specification

Mounting Type
Wall
Number Of Poles
2
Series
EH
Temperature Rating
-40 to 104 deg F
Time Setting
1 min to 7 days
Voltage Rating
240 VAC
Application
Water Heaters, Indoor, HVACR, Residential, Institutional, Industrial, Commercial, Military Facilities and Schools
Standard & Approvals
cCSAus File No. LR3730 Certified, HVACR, RoHS Compliant
Amperage Rating
30 A
Dimensions
7-3/4 in H x 5 in W x 3 in D
Battery Type
AA Alkaline
Contact Form
2NO DPST
Electrical Connections
Teeter
Enclosure Type
NEMA 1
Horsepower
1-1/2 hp
