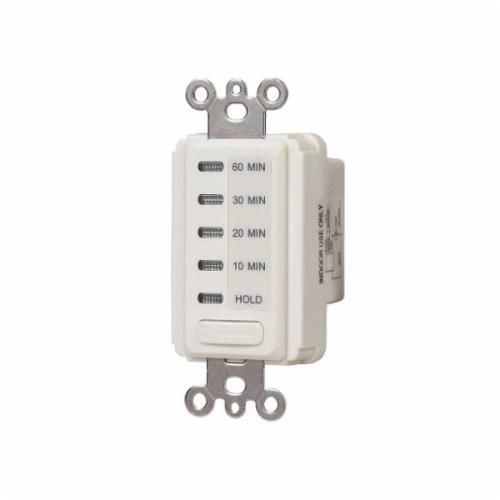

Intermatic® EI210LA EI200 Auto Shut-Off In-Wall Electronic Countdown Timer, 10/20/30/60 min Setting, 120 VAC, 1/2 hp, 1NO/SPST Contact, 1 Poles

Selected EI210LAIntermatic® EI210LA EI200 Auto Shut-Off In-Wall Electronic Countdown Timer, 10/20/30/60 min Setting, 120 VAC, 1/2 hp, 1NO/SPST Contact, 1 Poles
EI210LAIntermatic® EI210LA EI200 Auto Shut-Off In-Wall Electronic Countdown Timer, 10/20/30/60 min Setting, 120 VAC, 1/2 hp, 1NO/SPST Contact, 1 Poles

Documents

Features

  • Silent operation in time ranges from 5 minutes to 12 hours
  • Replaces single-pole switches in a variety of applications
  • Requires neutral wire
  • Incandescent/fluorescent/CFL/LED compatible
  • Single button time selection, with some models having a HOLD mode, for continuous ON operation
  • For use with decorator-style wall plate (not included)
  • Timer contacts shall break current at the end of timed cycle
  • Auto shut-off in-wall
  • 8.3 A at 120 VAC (tungsten-incandescent), 8 A at 120 VAC (ballast-magnetic), 15 A at 120 VAC (resistive-heater)
  • 60 Hz
  • 500 VA electronic ballast
  • 1800 maximum wattage
  • Light Almond
  • With Preset times

Specification

Mounting Type
Wall
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
15 A
Catalog ID
INTEI210LA
Contact Form
1NO/SPST
Dimensions
2.79 in H x 1.75 in W x 1.44 in D
Series
EI200
Temperature Rating
32 to 122 deg F
Time Setting
10/20/30/60 min
Voltage Rating
120 VAC
Application
Indoor, CFLs Lighting, LED Lighting, Fans, HVACR, Bathroom Fans, Spas, Hot Tubs, Storage Closets and Garage Lights
Standard & Approvals
cULus Listed, HVACR, RoHS Compliant
Horsepower
1/4 hp
