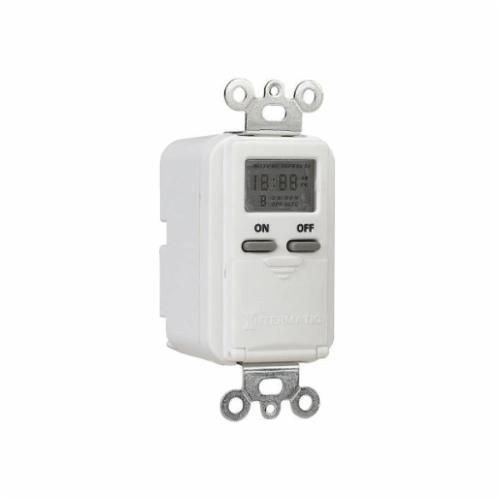

Intermatic® EI500WC Digital In-Wall Electronic Timer Switch, 1 min to 7 days Setting, 120 VAC, 1/4 hp, 1NO/SPST Contact, 1 Poles
Intermatic® EI500WC Digital In-Wall Electronic Timer Switch, 1 min to 7 days Setting, 120 VAC, 1/4 hp, 1NO/SPST Contact, 1 Poles
SKU: INTEI500WC
Manufacturer Part Number: EI500WC
UPC: 078275105232
Features
- Easy to program for 24-Hour or 7-Day load control
- Compact, quiet, low profile design. Continuously displays time of day, day of week, and load status
- Requires neutral wire
- Incandescent/fluorescent/CFL/LED compatible
- Built-in rechargeable, non-serviceable battery backup, minimum 36 hour backup. Replaces single-pole switches in a variety of applications
- For use with decorator type switch plates
- Replaces single-pole switches in a variety of applications. Automatic Daylight Saving Time (DST) adjustment. Random mode varies ON/OFF schedule to provide a "lived-in" appearance
- In-wall timers allow up to 14 ON/OFF events per week
- 8.3 A at 120 VAC (tungsten-incandescent), 8 A at 120 VAC (ballast-magnetic), 15 A at 120 VAC (resistive-heater)
- 60 Hz
- 500 VA electronic ballast
- 1800 maximum wattage
- White
Specification
| Mounting Type | Wall |
|---|---|
| Number Of Poles | 1 |
| Operation Mode | 24 hr |
| Series | EI500 |
| Temperature Rating | 32 to 104 deg F |
| Time Setting | 1 min - 7 days |
| Type | Digital |
| Voltage Rating | 120 VAC |
| Application | Entryway Lighting, Deck Light Controls, Landscape Light Controls, Attic Fans, Pumps, Hallway Lighting, Small Commercial Signage and Store Lighting |
| Standard & Approvals | cULus Listed, RoHS Compliant |
| Amperage Rating | 15 A |
| Dimensions | 2.75 in H x 1.75 in W x 1.36 in D |
| Battery Type | Rechargeable |
| Contact Form | 1NO/SPST |
| Horsepower | 1/4 hp |
