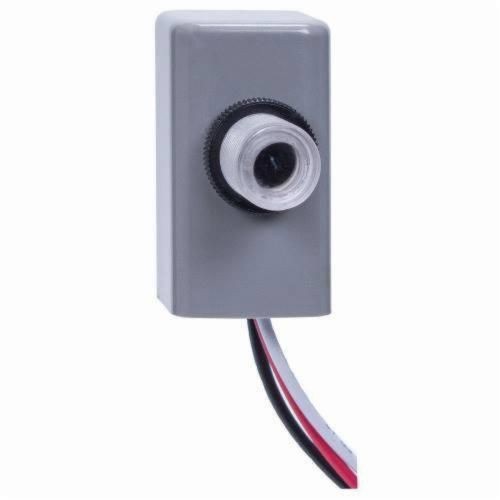

Intermatic® NightFox™ EK4036S Button Electronic Fix Mount Photo Control, 120 to 277 VAC, 1000 W Tungsten, Wall Mount

Selected EK4036SIntermatic® NightFox™ EK4036S Button Electronic Fix Mount Photo Control, 120 to 277 VAC, 1000 W Tungsten, Wall Mount
EK4036SIntermatic® NightFox™ EK4036S Button Electronic Fix Mount Photo Control, 120 to 277 VAC, 1000 W Tungsten, Wall Mount

Documents

Short Description

These electronic photocontrols permanently install on outdoor electrical boxes, in-wall boxes, or outdoor lighting fixtures. Ideal for LED and new induction fixtures with long-life expectations.

Features

  • Non-drift silicon light sensor with IR filter
  • DC relay with zero crossing circuitry for extended life
  • Conformal coated PCB
  • 15 years design life
  • Exceeds 10000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multifixture HID and LED installations
  • 255 J MOV surge protection element
  • 1/2-14 NPSM threaded stem fits standard outlet boxes and wall packs
  • 6 A, 120 - 277 VAC, 50/60 Hz ballast
  • 1.5/2.25 FC activation ON/OFF

Specification

Frequency Rating
50/60 Hz
Mounting Type
Wall
Operating Cycles
10000 On/Off
Timing Range
2 to 5 sec
Tungsten Rating
1000 W
Type
Button Electronic
Voltage Rating
120 to 277 VAC
Wire Size
18 AWG
Application
Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway and Landscape Lighting
Standard & Approvals
UL Listed, CSA Certified
Dimensions
57.2 mm H x 33.3 m W x 31.8 mm D
Arrester
255 J MOV
Ballast Load
1800 VA
Color
Gray
Environmental Conditions
-40 to 70 deg C
Amperage Rating
6 A
