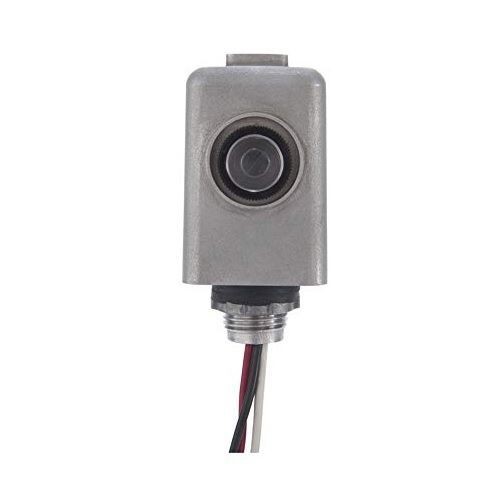

Intermatic® NightFox™ EK4436SM Stem Mount Photocell, 120 to 277 VAC, 1000 W Tungsten, 1800 VA Ballast, Stem Fixed Mount, Die Cast Zinc

Selected Intermatic® NightFox™ EK4436SM Stem Mount Photocell, 120 to 277 VAC, 1000 W Tungsten, 1800 VA Ballast, Stem Fixed Mount, Die Cast Zinc
Intermatic® NightFox™ EK4436SM Stem Mount Photocell, 120 to 277 VAC, 1000 W Tungsten, 1800 VA Ballast, Stem Fixed Mount, Die Cast Zinc

Documents

Short Description

NightFox™ photocontrols are designed to include a solid state light sensor and relays that feature zero-crossing technology for more precise control and long service life. As a leading manufacturer of photocontrols, we truly understand the technology needed for today's lighting applications. We pioneered a comprehensive testing approach that took the best information from NEMA 410 and UL standards, and combined them into a photocontrol testing methodology that ensures a maximized ROI. This testing gives us the confidence to back our products with 6-, 8- and 12-year product warranties. Fixed mount photocontrols provide an energy-saving solution for light fixtures designed with knockouts. The photocontrol can be permanently affixed onto wall packs, outdoor light posts or other exterior lighting installations. Swivel-type models allow the flexibility to adjust the photo eye based on the direction of the light.

Features

  • Long life, electronic photocell
  • Non-drift silicon light sensor with IR filter
  • DC relay with zero crossing circuitry for extended life
  • Conformal coated PCB
  • Exceeds 10000 ON/OFF switching cycles
  • Ideal for single or multifixture HID and LED installations up to 1650 W at 277 VAC
  • 255 J MOV surge protection element
  • 1/2-14 NPSM threaded stem fits standard outlet boxes and wall packs

Specification

Frequency Rating
50/60
Material
Die-Cast Zinc
Mounting Type
Stem
Operating Cycles
10000
Sensitivity
1.5 FC ON/2.25 FC OFF
Sensor Type
Silicon
Timing Range
Dusk On/Dawn OFF
Tungsten Rating
1000
Voltage Rating
120 to 277 VAC
Wire Size
18 AWG
Application
Dusk to Dawn Control, Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway, Landscape Lighting, Indoor/Outdoor and Raintight Applications
Standard & Approvals
ARRA, Buy American Act, ANSI C136.24
Dimensions
1.75 in W x 2.25 in D x 3.38 in H
Ballast Load
1800
Color
Gray
Environmental Conditions
-40 to 158 deg F Temperature
