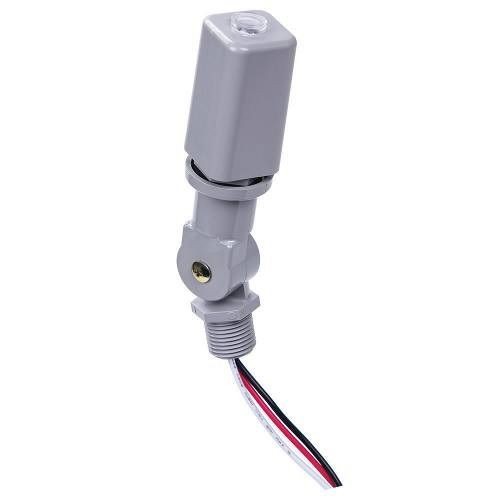

Intermatic® EK4736S Electronic Stem and Swivel Mounting Photocontrol, 105 to 305 VAC, 1000 W Tungsten, 1800 VA Ballast, Stem Mount, Plastic
Intermatic® EK4736S Electronic Stem and Swivel Mounting Photocontrol, 105 to 305 VAC, 1000 W Tungsten, 1800 VA Ballast, Stem Mount, Plastic
SKU: INTEK4736S
Manufacturer Part Number: EK4736S
UPC: 078275146310
Short Description
Features
- <0.5 W at 277 VAC power consumption
- Electronic control source
- Long life, electronic photocell, zero-cross technology
- LED fixtures totaling 1650 W at 277 VAC, fail mode on, top lens, uv stabilized
- Employs electronic components exclusively selected to meet extended life targets
- Conformal coated PCB assemblies for long term
- Zero-cross technology helps device withstand severe inrush current and extend relay life
- Non-drifting silicon light sensor IR filtered for human eye response
- Floodlights and security lighting
- Dusk-to-dawn control of outdoor lighting
- Solid state photo sensor (silicon IR filtered) sensor
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Material | Plastic |
| Mounting Type | Stem and Swivel Fixed |
| Sensor Type | Solid State Photo Sensor (Silicon IR Filtered) |
| Voltage Rating | 105 to 305 VAC |
| Standard & Approvals | ANSI C136.24 Compliant, cCSAus Certified, cULus Listed, Title CA 20 Listed, RoHS Compliant |
| Dimensions | 2.25 in H x 1.3 in W x 1.24 in D |
| Color | Gray |
| Enclosure Type | NEMA 4/10 |
| Fixture Type | LED |
| Amperage Rating | 6 A |
| Application | For exterior lighting, street lighting, parking lot, pedestrian pathway and landscape lighting |
| Wire Size | NO 18 AWG |
| Type | Electronic |
| Tungsten Rating | 1000 W |
| Timing Range | 2 to 5 sec |
| Sensitivity | 1.5 FC ON/2.25 FC OFF |
| Operating Cycles | 1000 |
| Environmental Conditions | -40 to 70 deg C |
| Ballast Load | 1800 VA |
