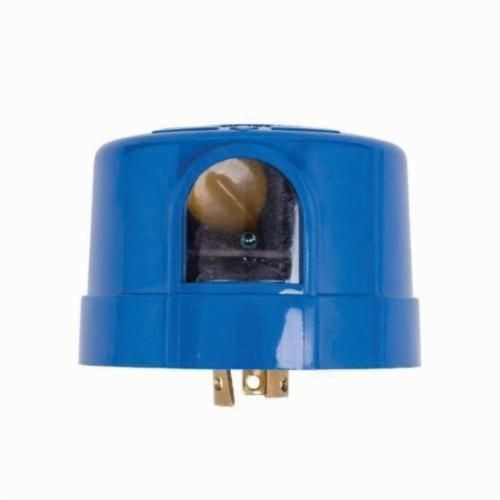

Intermatic® ELC4536 Locking Electronic Photocontrol, 120 to 277 VAC, 1000 W Tungsten, 1800 VA Ballast, Turn-Lock Mount

Selected ELC4536Intermatic® ELC4536 Locking Electronic Photocontrol, 120 to 277 VAC, 1000 W Tungsten, 1800 VA Ballast, Turn-Lock Mount
ELC4536Intermatic® ELC4536 Locking Electronic Photocontrol, 120 to 277 VAC, 1000 W Tungsten, 1800 VA Ballast, Turn-Lock Mount

Documents

Features

  • Non-drift silicon light sensor with IR filter
  • Power-up ON delay (45 - 60 sec) for easy installation verification and troubleshooting
  • 510 J MOV surge protection
  • Dusk to dawn roadway, area and parking lot lighting
  • Raintight

Specification

Frequency Rating
50/60 Hz
Material
Plastic
Mounting Type
Turn-Lock
Operating Cycles
5000 ON/OFF
Minimum Order Qty
1
Order Interval
1
Ballast Load
1800 VA
Catalog ID
INTELC4536
Color
Blue
Contact Form
SPST
Dimensions
2.204 in H x 3.18 in W
Environmental Conditions
-40 to 70 deg C
Sensitivity
1.5 fc (ON)/2.25 fc (OFF)
Sensor Type
Silicon/IR Filter
Timing Range
2 to 5 sec
Tungsten Rating
1000 W
Type
Locking
Voltage Rating
120 to 277 VAC
Application
Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway, Floodlights, Security Lighting And Landscape Lighting, Single Hid and Led Fixtures
Standard & Approvals
ANSI C136.10 Approved, UL, cUL Listed, RoHS Compliant
Amperage Rating
2 A
