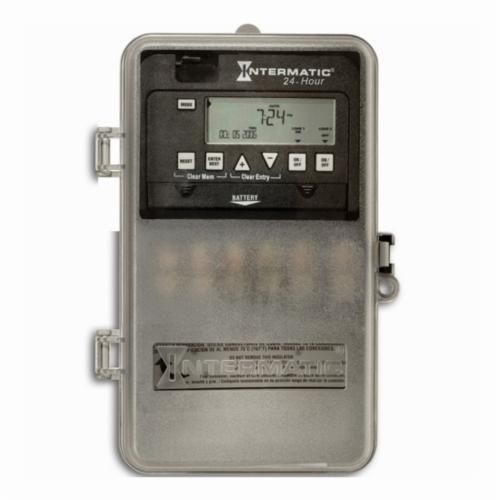

Intermatic® ET1125CPD82 ET1100 Electronic Timer Switch, 1 min to 23 hr 59 min Setting, 120/277 VAC, 1, 2 hp, 1NO/SPST Contact, 1 Poles

Selected Intermatic® ET1125CPD82 ET1100 Electronic Timer Switch, 1 min to 23 hr 59 min Setting, 120/277 VAC, 1, 2 hp, 1NO/SPST Contact, 1 Poles
Intermatic® ET1125CPD82 ET1100 Electronic Timer Switch, 1 min to 23 hr 59 min Setting, 120/277 VAC, 1, 2 hp, 1NO/SPST Contact, 1 Poles

Documents

Short Description

The ET1100 24 hr Electronic Time Switches enable a program to be repeated on a daily basis. These time switches provide dependable and uncomplicated performance, plus to-the-minute programming for accurate load control and reduced energy costs. Up to 28 setpoints or events can be preset to automatically repeat. The program can be disabled at any time by placing the time switch in the Manual operating mode. Control buttons provide manual control of each circuit independently, regardless of the operating mode. All models come with two industrial-grade AAA alkaline batteries to provide time keeping and automatic carryover for a minimum of 3 years. The batteries are easily replaced in the field and do not require removing the time switch mechanism or field wiring. Each time switch is housed in a lockable enclosure to protect against vandalism and unauthorized tampering.

Features

  • Program can be repeated on a daily basis
  • To the minute programming for accurate load control and reduced energy costs
  • Up to 28 set points or events
  • Automatic daylight saving time ON/OFF adjustment
  • Non-volatile EEPROM memory protects programming indefinitely
  • Temporary override or permanent manual override
  • Astronomic models enable dusk-to-dawn scheduling
  • Plastic enclosure
  • 30 A at 120/240 VAC (resistive NO), 20 A at 28 VDC (resistive NO), 30 A at 120/240 VAC (inductive NO), 5 A at 120/240 VAC (tungsten NO), 20 A at 120 to 277 VAC (ballast NO)
  • 50/60 Hz frequency
  • 1 hp at 120 VAC, 20 hp at 240 VAC

Specification

Mounting Type
Wall
Number Of Poles
1
Operation Mode
24
Temperature Rating
-40 to 155 deg F
Time Setting
1 min to 23 hr 59 min
Voltage Rating
120/277 VAC
Amperage Rating
30 A
Dimensions
254 mm H x 165.1 mm W x 101.6 mm D
Battery Type
AAA Alkaline
Contact Form
1NO SPST
Enclosure Type
NEMA 3R
Horsepower
1 hp, 2 hp
Electrical Connections
Teeter/Wire Lead
Standard & Approvals
RoHS Compliant, cCSAus Certified, California Title 24 Compliant, HVACR Approved, Title CA 20 Listed
Application
Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control and Various Other Electrical Loads, Outdoor, HVACR and Industrial Applications
Series
ET1100
Pulse Duration
2
