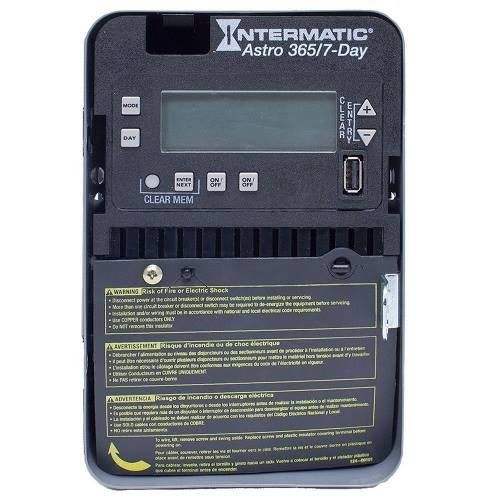

Intermatic® ET2825C ET2000 Electronic Time Switch, 1 min to 6 days 23 hr 59 min Setting, 120 to 277 VAC, 1, 2 hp, 2SPST 1NO Contact, 1 Poles

Selected Intermatic® ET2825C ET2000 Electronic Time Switch, 1 min to 6 days 23 hr 59 min Setting, 120 to 277 VAC, 1, 2 hp, 2SPST 1NO Contact, 1 Poles
Intermatic® ET2825C ET2000 Electronic Time Switch, 1 min to 6 days 23 hr 59 min Setting, 120 to 277 VAC, 1, 2 hp, 2SPST 1NO Contact, 1 Poles

Documents

Short Description

The ET2000 Series offers an easy to use interface, while still allowing to-the-minute scheduling capabilities for nearly any application. This series provides 50 holiday blocks with independent scheduling to ensure the loads are always in the proper ON/OFF state. This series also includes 96 ON/OFF events for even the most demanding schedules. The scheduling capabilities, configurable outputs and a 100 hr backup without the need of batteries, make this series ideal for nearly any application.

Features

  • 100 hr super capacitor eliminates the need for batteries
  • Up to 96 set points or events
  • Up to 50 holiday blocks with schedule capabilities
  • Additional mode of operation turns the ON/OFF buttons into 2 hr overrides
  • Configurable outputs allow the control of various voltages and applications
  • Relays incorporate zero crossing technology to extend the life of the control
  • Non-volatile EEPROM memory protects programming indefinitely
  • LED compatible
  • USB port makes transferring and saving of schedules easy
  • Automatic voltage detection for fast, easy, out of the box installations
  • Control different load types and voltages from a single control
  • Configurable outputs allow these models to cover various types of applications with a single clock
  • 1 hp at 120 VAC, 2 hp at 240 VAC horsepower rating
  • 30 A at 120/240 VAC, 20 A at 28 VDC resistive, 30 A at 120/240 VAC inductive, 5 A at 120/240 VAC tungsten, 20 A at 120 to 277 VAC, 10 A at 120/277 VAC ballast

Specification

Mounting Type
Wall
Number of Channels
2
Number Of Poles
1
Number of Pulse Events
96
Operation Mode
6 Days 23 hr 59 min
Series
ET2000
Temperature Rating
-40 to 155 deg F
Voltage Rating
120 to 277 VAC
Application
Exterior Lighting, Interior Lighting, Security Lighting, Parking Lot Lighting, Bell Ringing, Electric Motors, Electric Pump, Indoor Applications
Standard & Approvals
RoHS, California Title 20/24 Compliant, UL, cULus Listed
Amperage Rating
30 A
Dimensions
7-7/8 in H x 5-1/8 in W x 3-7/16 in D
Display
Digital
Electrical Connections
18 to 10 AWG Wire Lead
Enclosure Type
NEMA 1
Horsepower
1 hp, 2 hp
Time Setting
1 min to 6 Days 23 hr 59 min
Contact Form
2SPST 1NO
