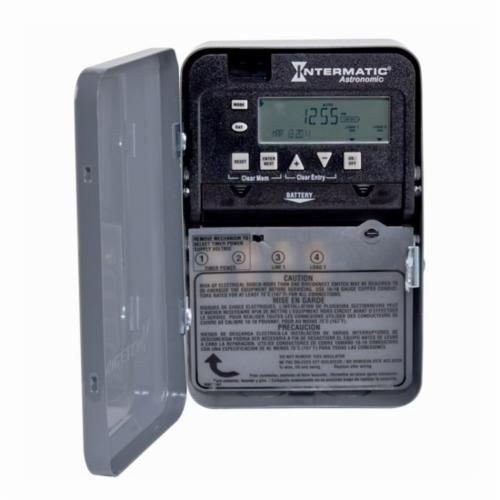

Intermatic® ET8015C ET8000 Electronic Timer Switch, 1 min to 6 days 23 hr 59 min Setting, 120/277 VAC, 1, 2 hp, 1NO/SPST Contact, 1 Poles

Selected Intermatic® ET8015C ET8000 Electronic Timer Switch, 1 min to 6 days 23 hr 59 min Setting, 120/277 VAC, 1, 2 hp, 1NO/SPST Contact, 1 Poles
Intermatic® ET8015C ET8000 Electronic Timer Switch, 1 min to 6 days 23 hr 59 min Setting, 120/277 VAC, 1, 2 hp, 1NO/SPST Contact, 1 Poles

Short Description

The ET8000 Series 7-Day Astronomic Time Switches feature independent 7-Day programming to provide flexibility for applications where load switching differs each day of the week. These time switches provide dependable and uncomplicated performance, plus to-the-minute programming for accurate load control and reduced energy costs. Up to28 ON/28 OFF (56 events) can be preset to automatically repeat. Each event can be applied to any combo of circuits and days. Each circuit is provided with an independently scheduled Astronomic ON event and Astronomic OFF event. The program can be disabled at an time by placing the time switch in the Manual operating mode. Control buttons provide manual control of each circuit independently regardless of the operating mode. All models come with two industrial-grade AAA alkaline batteries to provide time keeping and automatic carryover for a minimum of three years. The batteries are easily replaced in the field without requiring removal of the time switch mechanism or field wiring. Each time switch is housed in a lockable enclosure to protect from vandalism and unauthorized tampering.

Features

  • Program can be repeated on a weekly basis
  • To-the-minute programming for accurate load control and reduced energy costs
  • Up to 28 ON/28 OFF set points or events and 4 Astronomic events
  • Astronomic feature provides sunset ON and sunrise OFF settings to eliminate the need for separate photo control devices
  • Non-volatile EEPROM memory protects programming indefinitely
  • Temporary override or permanent manual override
  • Astronomic models enable dusk-to-dawn scheduling
  • Steel enclosure
  • 30 A at 120/240 VAC (resistive NO), 20 A at 28 VDC (resistive NO), 30 A at 120/240 VAC (inductive NO), 5 A at 120/240 VAC (tungsten NO), 20 A at 120 - 277 VAC (ballast NO)
  • 50/60 Hz
  • 1 hp at 120 VAC, 2 hp at 240 VAC

Specification

Mounting Type
Wall
Number Of Poles
1
Minimum Order Qty
1
Order Interval
1
Amperage Rating
30 A
Battery Type
AAA Alkaline
Catalog ID
INTET8015C
Contact Form
1NO SPST
Dimensions
200 mm H x 130.2 mm W x 87.3 mm D
Electrical Connections
Teeter
Enclosure Type
NEMA 1
Series
ET8000
Temperature Rating
-40 to 155 deg F
Time Setting
1 min to 6 Days 23 hr 59 min
Voltage Rating
120/277 VAC
Application
Interior Lighting, Exterior Lighting, Electric Pumps, Electric Motor Control, Various Other Electrical Loads, Indoor, HVACR and Industrial
Standard & Approvals
cCSAus Certified, California TITLE 24 Compliant, HVACR, Title CA 20 Listed and RoHS Compliant
Operation Mode
7 days
Horsepower
1 hp/2 hp
