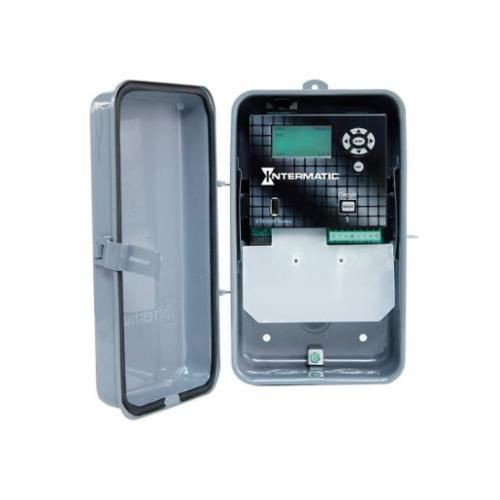

Intermatic® ET90115CR ET90000 Astronomic Electronic Timer Switch, 1 sec to 365 days Setting, 120/277 VAC, 1, 2 hp, 1NO-1NC, SPDT Contact, 1 Poles
Intermatic® ET90115CR ET90000 Astronomic Electronic Timer Switch, 1 sec to 365 days Setting, 120/277 VAC, 1, 2 hp, 1NO-1NC, SPDT Contact, 1 Poles
SKU: INTET90115CR
Manufacturer Part Number: ET90115CR
UPC: 078275124844
Documents
Short Description
Features
- Program can be repeated on an annual basis. To-the-minute programming for accurate load control and reduced energy costs
- Astronomic feature provides sunset ON and sunrise OFF settings to eliminate the need for separate photo control devices. Astronomic programming can be combined with independent programs to provide a sunset ON and timed OFF program
- Up to 4,000 setpoints or events can be distributed throughout the year
- Easy programming, replication, and backup of schedules via USB port
- Remote control and monitoring via Ethernet connection
- Automatic Daylight Saving Time (DST) adjustment (factory enabled)
- Non-volatile memory protects programming indefinitely
- Future upgrading available through in-field firmware updates and relay module expansions. Advanced scheduling including relative dating, such as fourth Thursday of November or first week of year
- 100-hour super capacitor eliminates the need for batteries
- Easy-to-follow on-screen menus for programming to-the-minute accuracy
- PC App for easy scheduling or control, either remotely or through USB flash drive, Mobile app for real time status and overrides
- Automatically detects input voltages between 120 and 277 VAC
- Ethernet capable for upgrading firmware and networking time switches and PC tools
- Password protection, schedule review mode, saved activity log
- Steel enclosure
- 30 A at 12 - 240 VAC (general purpose and resistive NO only), 20 A at 12 - 240 VAC (general purpose and resistive NO), 10 A at 12 - 240 VAC (general purpose and resistive NC), 20 A at 28 VDC (general purpose and resistive NO), 10 A at 28 VDC (general purpose and resistive NC), 20 A at 120 - 277 VAC (ballast NO), 3 A at 120 - 277 VAC (ballast NC), 5 A at 12 - 240 VAC (tungsten NO only)
- 50/60 Hz
- 1/4 hp/1 hp at 120 VAC, 1/2 hp/2 hp at 240 AVC
Specification
| Mounting Type | Wall |
|---|---|
| Number Of Poles | 1 |
| Number of Pulse Events | 4000 |
| Operation Mode | 365 days |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | INTET90115CR |
| Contact Form | 1NO-1NC/SPDT |
| Dimensions | 9.6 in H x 5.7 in W x 3.6 in D |
| Electrical Connections | Wire Lead |
| Enclosure Type | NEMA 3R |
| Pulse Duration | 1 sec - 23 hr 59 min |
| Series | ET90000 |
| Temperature Rating | -40 to 120 deg F |
| Time Setting | 1 sec - 365 days |
| Voltage Rating | 120/277 VAC |
| Application | General Purpose, Lighting, HVACR, School Districts, Banks, Small Hotels, Franchises, Retail Stores, Municipalities, Parking Lots and Offices |
| Standard & Approvals | California TITLE 24 Compliant, cCSAus Certified, cULus Listed, HVACR, RoHS Listed, Title CA 20 Listed |
| Horsepower | 1 hp/2 hp |
