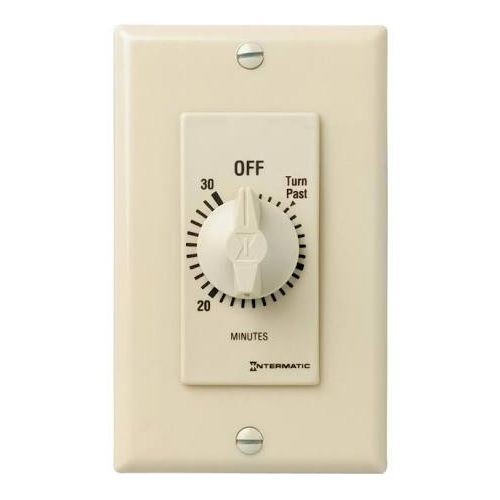

Intermatic® FD30MC FD Series Auto Off Decorator Mechanical Spring Wound Timer, 30 min Setting, 125/257 VAC, 1 hp, 2 hp hp, 1NO/SPST Contact, 1 Poles
Intermatic® FD30MC FD Series Auto Off Decorator Mechanical Spring Wound Timer, 30 min Setting, 125/257 VAC, 1 hp, 2 hp hp, 1NO/SPST Contact, 1 Poles
SKU: INTFD30MC
Manufacturer Part Number: FD30MC
UPC: 078275005037
Documents
Short Description
Features
- Decorator auto-off timer
- Supplied time dial plates are designed to fit either toggle (FF) or decorator style (FD) switch plates
- Single or multi-gang with no field modifications required
- Time saving up front terminal connection with teeter-type terminals
- Energy-efficient mechanical timers do not require electricity to operate
- Automatically limit the on times
- Incandescent/fluorescent/CFL/LED compatible
- Provide direct replacement of a standard wall switch in single or multi-gang 2-1/2 in deep junction boxes
- Spiral time scale to provide easy selection of the time setting
- Standard industry accepted molded plate and knob
- Press-on knob design ensures quick and easy installation
- Minimum of 0.085 in thread engagement
- 7 A at 125 VAC (tungsten), 20 A at 125 VAC, 10 A at 250/277 VAC (resistive)
- 1 hp at 120 VAC, 2 hp at 240 VAC
- 50/60 Hz
- No hold
- Ivory
Specification
| Mounting Type | Wall |
|---|---|
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Catalog ID | INTFD30MC |
| Contact Form | 1NO/SPST |
| Dimensions | 2.79 in H x 1.6 in W x 1.19 in D |
| Series | FD |
| Temperature Rating | -40 to 104 deg F |
| Time Setting | 30 min |
| Type | Mechanical |
| Voltage Rating | 125/257 VAC |
| Application | Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR |
| Standard & Approvals | cCSAus Certified, HVACR, RoHS Compliant, UL Listed, UL Recognized |
| Horsepower | 1 hp/2 hp |
