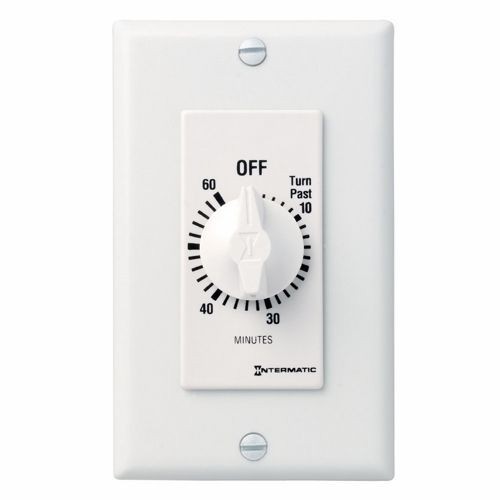

Intermatic® FD460MW FD Series Auto Off Decorator Mechanical Spring Wound Timer, 60 min Setting, 125/257 VAC, 1 hp, 2 hp hp, 2NO/DPST Contact, 2 Poles
Intermatic® FD460MW FD Series Auto Off Decorator Mechanical Spring Wound Timer, 60 min Setting, 125/257 VAC, 1 hp, 2 hp hp, 2NO/DPST Contact, 2 Poles
SKU: INTFD460MW
Manufacturer Part Number: FD460MW
UPC: 078275186033
Documents
Short Description
Features
- Decorator auto off timer
- Supplied time dial plates are designed to fit either toggle (FF) or decorator style (FD) switch plates
- Single or multi-gang with no field modifications required
- Time saving up front terminal connection with teeter type terminals
- Energy efficient mechanical timers do not require electricity to operate
- Automatically limit the on times
- Incandescent-fluorescent CFL/LED compatible
- Provide direct replacement of a standard wall switch in single or multi-gang 2-1/2 in deep junction boxes
- Spiral time scale to provide easy selection of the time setting
- Standard industry accepted molded plate and knob
- Press on knob design ensures quick and easy installation
- Minimum of 0.085 in thread engagement
- 7 A at 125 VAC (tungsten), 20 A at 125 VAC, 10 A at 250/277 VAC (resistive)
- 1 hp at 120 VAC, 2 hp at 240 VAC motor power
- 50/60 Hz frequency
- No hold
- White color
Specification
| Series | FD Series |
|---|---|
| Temperature Rating | -40 to 104 deg F |
| Time Setting | 60 min |
| Type | Auto Off Decorator Mechanical |
| Voltage Rating | 125/257 VAC |
| Application | Indoor, CFLs Lighting, Fans, Electric Motors, Heaters and HVACR Applications |
| Standard & Approvals | UL Recognized, cCSAus Certified, HVACR Approved, PROP65: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Catalog ID | INTFD460MW |
| Contact Form | 2NO/DPST |
| Dimensions | 2.79 in H x 1.6 in W x 1.19 in D |
| Electrical Connections | Teeter |
| Mounting Type | Wall |
| Number Of Poles | 2 |
| Horsepower | 1 hp, 2 hp hp |
