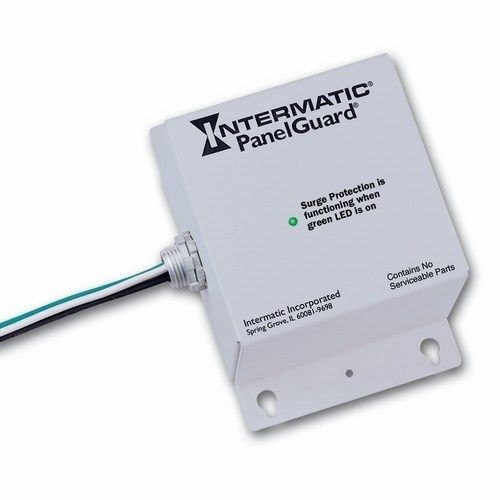

Intermatic® IG3240RC3 Surge Protective Device, 120/240 VAC, 50/60 Hz, 50 kA SCCR, 2 Phase

Selected IG3240RC3Intermatic® IG3240RC3 Surge Protective Device, 120/240 VAC, 50/60 Hz, 50 kA SCCR, 2 Phase
IG3240RC3Intermatic® IG3240RC3 Surge Protective Device, 120/240 VAC, 50/60 Hz, 50 kA SCCR, 2 Phase

Documents

Short Description

The IG series Surge Protective Devices are designed for a variety of Type 1 and Type 2 applications. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. CSA listed to ANSI/UL 1449 3rd edition, the IG series is approved for residential/light commercial services (AC power, telephone and/or cable).

Features

  • LED indicator provides status, on LED indicates device is energized and providing protection
  • OFF LED indicates device may still be energized but protection is diminished and the unit should be replaced
  • On LED indicates device is energized and providing protection
  • Green LED indicator
  • 6-mode of protection
  • Type 1 applications include outdoor installations before service entrances and utility meter cabinets, type 2 applications include installations after service entrances

Specification

Frequency Rating
50/60 Hz
Material
Metal
Mounting Type
Wall
Number of Wires
4
Standard & Approvals
ANSI/UL 1449 3rd Edition, CSA Certified, cCSAus Certified
Environmental Conditions
-35 to 85 deg C Operating Temperature
Enclosure Type
NEMA 1/2/3R
Electrical Ratings
120/240 VAC
Dimensions
6.28 in H x 4.4 in W x 3.71 in D
Application
Residential and Light Commercial Applications
Short Circuit Current Rating
50 kA
Modes of Protection
L1-N/L2-N/L1-G/L2-G/N-G/L1-L2
Indicator Type
Green LED
Series
IG Series
Phase
2
