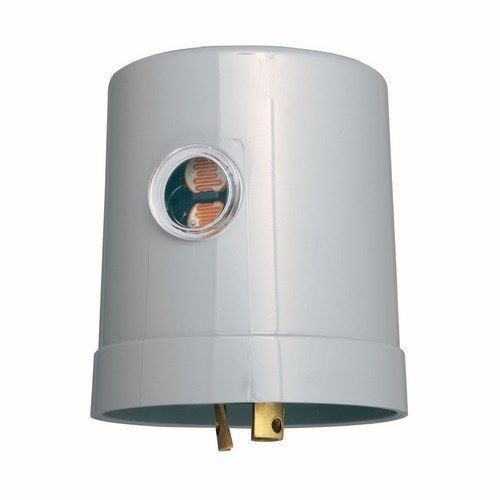

Intermatic® K1222 Locking Thermal Photocontrol, 210 to 240 VAC, 1800 W Tungsten, 1800 VA Ballast, Twist-Lock Mount, Polycarbonate
Intermatic® K1222 Locking Thermal Photocontrol, 210 to 240 VAC, 1800 W Tungsten, 1800 VA Ballast, Twist-Lock Mount, Polycarbonate
SKU: INTK1222
Manufacturer Part Number: K1222
UPC: 078275512221
Features
- 1 FC ON, 3 to 10 FC OFF activation
- 3 W power
- 7.5 A tungsten/ballast
- -40 to 70 deg C operating temperature
- Instant ON/OFF switching, 2400 V open type spark gap arrestor with 3-prong connector
- The K1100 and K1200 series photo controls are relay-type photo controls with adjustable stem (K1100 series) or locking type (K1200 series) mounting
- The timer also feature instant ON/OFF switching
Specification
| Frequency Rating | 50/60 |
|---|---|
| Material | Polycarbonate |
| Mounting Type | Twistlock |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 7.5 A |
| Arrester | 2400 VAC Open Spark Gap |
| Ballast Load | 1800 |
| Catalog ID | INTK1222 |
| Color | Gray |
| Dimensions | 3 in Dia x 3-3/4 in H |
| Environmental Conditions | -40 to 158 deg F Operating Temperature |
| Sensitivity | 1 FC ON/3 to 10 FC OFF |
| Tungsten Rating | 1800 |
| Type | Locking |
| Voltage Rating | 210 to 240 VAC |
| Application | Exterior Lighting, Street Lighting, Parking Lot, Pedestrian Pathway and Landscape Lighting |
| Standard & Approvals | RoHS Compliant, California Title 24 Compliant, UL Recognized, CSA Certified, Title CA 20 Listed |
