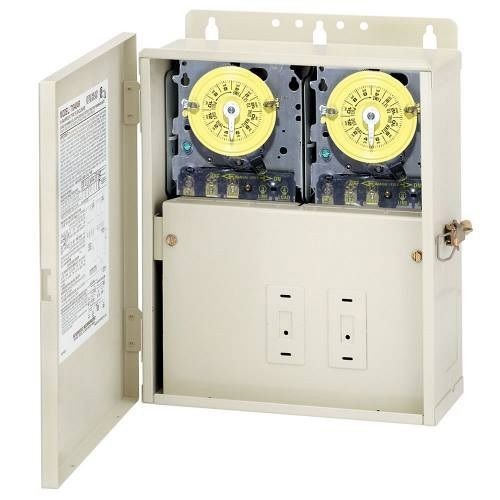

Intermatic® T10101R T10000R Power Center Mechanical Timer Switch, 24 hr Setting, 120/240 VAC, 5 hp, SPST/SPST Contact, 1 Poles
Intermatic® T10101R T10000R Power Center Mechanical Timer Switch, 24 hr Setting, 120/240 VAC, 5 hp, SPST/SPST Contact, 1 Poles
SKU: INTT10101R
Manufacturer Part Number: T10101R
UPC: 078275002579
Documents
Features
- Can be used as a power center only, or add mechanisms or wiring devices for complete control systems
- Available with one or two heavy-duty time switch mechanisms
- Accepts any combination of PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M, or RC2000M Series mechanisms
- Load center dead front has two knockouts for switches or GFCIs
- Mechanism specifications and ratings on page 142
- Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately below
- Control two-speed pumps with the T10604R
- 30 A at 120/208/240 VAC (resistive), 30 A at 120/208/240 VAC (inductive), 30 A at 120/208/240 VAC (tungsten)
- 2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC motor
- 60 Hz
- 1000 VA, 120/208/240 VAC pilot duty
- 24 hr repeat time
- (2) T101M SPST/SPST switch
Specification
| Mounting Type | Wall |
|---|---|
| Number Of Poles | 1 |
| Series | T10000R |
| Temperature Rating | -40 to 130 deg F |
| Time Setting | 24 hr |
| Type | Power Center |
| Voltage Rating | 120/240 VAC |
| Application | For pool and spa equipment control |
| Standard & Approvals | cCSAus Certified, RoHS Compliant |
| Amperage Rating | 30 A |
| Dimensions | 12 in L x 4-1/4 in W x 12 in H |
| Contact Form | SPST |
| Enclosure Type | NEMA 3R |
| Includes | T104M201 and T104M Time Switches |
| Horsepower | 5 hp |
