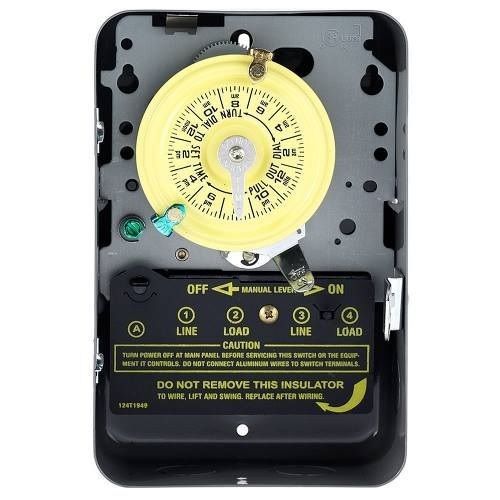

Intermatic® T104-20 Mechanical Timer Switch, 1 to 23 hr Setting, 208 to 277 VAC, 5 hp, 2NO/DPST Contact, 2 Poles

Selected Intermatic® T104-20 Mechanical Timer Switch, 1 to 23 hr Setting, 208 to 277 VAC, 5 hp, 2NO/DPST Contact, 2 Poles
Intermatic® T104-20 Mechanical Timer Switch, 1 to 23 hr Setting, 208 to 277 VAC, 5 hp, 2NO/DPST Contact, 2 Poles

Documents

Short Description

With the easy-to-set yellow dial, these time switches allow for basic control of electric hot water heaters. These time switches offer a minimum ON/OFF time of one hour, and are available for 208-250 VAC applications. With the proven reliability of our mechanical line, these time switches provide dependable electric water heater control.

Features

  • Three sets of ON/OFF trippers
  • Enables shifting electricity use into off-peak hours to reduce energy costs
  • Convenient external override switch
  • 40 A at 120 - 277 VAC (Resistive, Inductive, Tungsten)
  • 60 Hz
  • 3 W power
  • 1 - 23 hr time duration
  • 10000 W resistive
  • Without External Override

Specification

Mounting Type
Wall
Number Of Poles
2
Temperature Rating
-40 to 130 deg F
Standard & Approvals
cCSAus Certified, cULus Listed, HVACR, RoHS Compliant
Amperage Rating
40 A
Dimensions
5 in L x 3 in W x 7-3/4 in H
Enclosure Type
NEMA 1
Horsepower
5 hp
Voltage Rating
208 to 277 VAC
Type
Water Heater Control
Time Setting
1 - 23 hr
Contact Form
2NO DPST
Application
Commercial, Industrial, Residential, Indoor and HVACR
