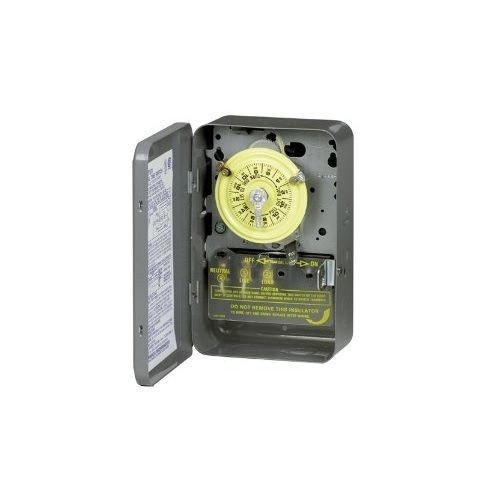

Intermatic® T104R T100 Electro Mechanical Mechanical Timer Switch, 24 hr Setting, 208 to 277 VAC, 5 hp, 2NO/DPST Contact, 2 Poles

Selected Intermatic® T104R T100 Electro Mechanical Mechanical Timer Switch, 24 hr Setting, 208 to 277 VAC, 5 hp, 2NO/DPST Contact, 2 Poles
Intermatic® T104R T100 Electro Mechanical Mechanical Timer Switch, 24 hr Setting, 208 to 277 VAC, 5 hp, 2NO/DPST Contact, 2 Poles

Short Description

The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 ON/OFF operations per day. A manual override switch provides added convenience.

Features

  • Direct 24-hour control of most loads
  • Up to 12 ON/OFF operations each day with minimum ON/OFF times of one hour
  • Manual override
  • One ON and one OFF tripper included
  • 40 A at 120 - 480 VAC (resistive), 40 A (inductive), 40 A at 120 - 277 (tungsten)
  • 2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC motor
  • 60 Hz
  • 3 W power
  • 1000 VA pilot duty
  • 14 - 8 AWG
  • 16 A, 277 VAC electronic ballast
  • 24 hr time duration

Specification

Mounting Type
Wall
Number Of Poles
2
Temperature Rating
-40 to 130 deg F
Time Setting
24 hr
Type
Electro-Mechanical
Application
Commercial, Industrial, Residential, Outdoor and HVACR
Standard & Approvals
cCSAus Certified, cULus Listed, HVACR, RoHS Compliant
Amperage Rating
40 A
Enclosure Type
NEMA 3R
Horsepower
5 hp
Voltage Rating
208 to 277 VAC
Series
T100
Contact Form
2NO DPST
Dimensions
5-1/2 in L x 4 in W x 9-3/8 in H
