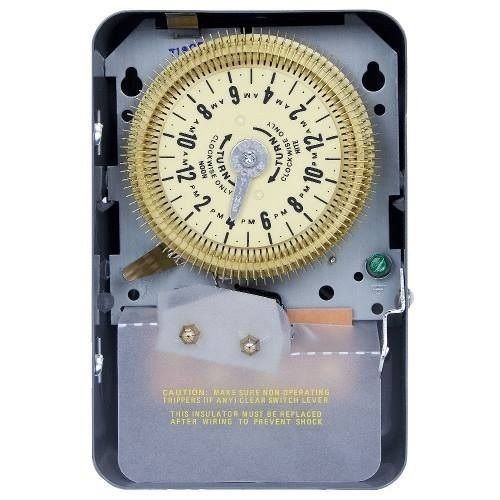

Intermatic® T1975R T1970 Electro Mechanical Mechanical Timer Switch With Skipper Wheel, 15 min to 24 hr Setting, 125 VAC, 1 hp, 1NO-1NC, SPDT Contact, 1 Poles

Selected Intermatic® T1975R T1970 Electro Mechanical Mechanical Timer Switch With Skipper Wheel, 15 min to 24 hr Setting, 125 VAC, 1 hp, 1NO-1NC, SPDT Contact, 1 Poles
Intermatic® T1975R T1970 Electro Mechanical Mechanical Timer Switch With Skipper Wheel, 15 min to 24 hr Setting, 125 VAC, 1 hp, 1NO-1NC, SPDT Contact, 1 Poles

Documents

Short Description

This series of mechanical time switches offers more flexible scheduling capabilities by offering 15-minute intervals. These units also come with trippers that slide in or out easily for fast and accurate settings. All units can control up to 20 A of electrical load and have a single pole double throw switch.

Features

  • Provides up to 96 operations (48 ON/48 OFF) every 24 hours
  • Models with skipper wheel allow for operations to be omitted on selected day(s) of the week
  • 15-minute intervals
  • Trippers slide in and out of dial for fast, accurate setting
  • 20 A at 125/208 - 277/480 VAC (resistive)
  • 1/2 hp at 125 VAC, 1 hp at 250 VAC motor
  • 60 Hz
  • 3 W power
  • 14 - 12 AWG
  • 24 hr time duration
  • With Skipper Wheel

Specification

Mounting Type
Wall
Number Of Poles
1
Series
T1970
Temperature Rating
-40 to 130 deg F
Time Setting
15 min - 24 hr
Type
Electromechanical
Voltage Rating
125 VAC
Application
Indoor/Outdoor Applications
Standard & Approvals
cCSAus Certified, RoHS Compliant
Amperage Rating
20 A
Dimensions
10-1/8 in H x 6-1/2 in W x 3-5/8 in D
Contact Form
1NO SPDT
Enclosure Type
NEMA 3R
Horsepower
1 hp
