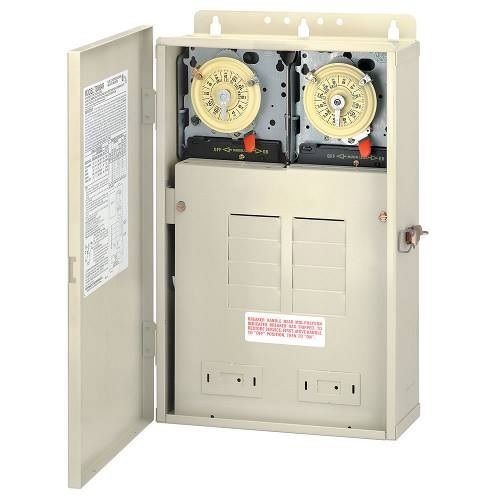

Intermatic® T30401R T30000R 1-Phase Mechanical Timer Switch, 24 hr Setting, 120/240 VAC, 5 hp, DPST/SPST Contact, 2 Poles

Selected Intermatic® T30401R T30000R 1-Phase Mechanical Timer Switch, 24 hr Setting, 120/240 VAC, 5 hp, DPST/SPST Contact, 2 Poles
Intermatic® T30401R T30000R 1-Phase Mechanical Timer Switch, 24 hr Setting, 120/240 VAC, 5 hp, DPST/SPST Contact, 2 Poles

Documents

Features

  • Can be used as a Load Center only, or add mechanisms or wiring devices for complete control systems
  • Comes with an 8 or 16 circuit breaker base, equipment grounding bar, and optional mechanical time switch(es)
  • Reduces installation costs
  • Eliminates the need for additional service panels
  • Accepts any combination of PF1000M, P1403ME, P1353ME, P4043ME, P4243ME, T100M, or RC2000M series mechanisms
  • Fully compatible with all electrical requirements for pool/spa installations
  • Load center dead front has two knockouts for switches or GFCIs
  • Wiring devices may be installed in these Load Centers with the use of Standoffs, sold separately below
  • 30 A at 120/208/240 VAC (resistive), 30 A at 120/208/240 VAC (inductive), 30 A at 120/208/240 VAC (tungsten)
  • 2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC motor
  • 60 Hz
  • 1000 VA, 120/208/240 VAC pilot duty
  • 24 hr repeat time

Specification

Mounting Type
Wall
Number Of Poles
2
Minimum Order Qty
1
Order Interval
1
Amperage Rating
100 A
Catalog ID
INTT30401R
Contact Form
DPST, SPST
Dimensions
16-1/2 in H x 10-7/8 in W x 4-1/2 in D
Enclosure Type
NEMA 3R
Series
T30000R
Temperature Rating
-40 to 130 deg F
Time Setting
24 hr
Voltage Rating
120/240 VAC
Application
For pool and spa equipment control
Standard & Approvals
cCSAus Certified, RoHS Compliant
Includes
P1353ME, P4243ME, T100M, PF1000M Series Mechanisms
Horsepower
5 hp
Type
Load Center
