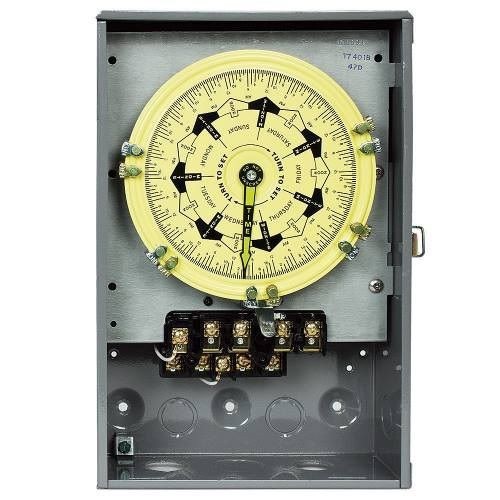

Intermatic® T7401B T7000B Electro Mechanical Mechanical Timer Switch, 3-1/2 hr to 7 days Setting, 125 VAC, 10 hp, 4NO 4PST Contact, 4 Poles

Selected Intermatic® T7401B T7000B Electro Mechanical Mechanical Timer Switch, 3-1/2 hr to 7 days Setting, 125 VAC, 10 hp, 4NO 4PST Contact, 4 Poles
Intermatic® T7401B T7000B Electro Mechanical Mechanical Timer Switch, 3-1/2 hr to 7 days Setting, 125 VAC, 10 hp, 4NO 4PST Contact, 4 Poles

Documents

Short Description

These 7-Day Mechanical time switches offer the capability of having a different schedule for each day of the week. They can handle up to 40 A of electrical loads per circuit and have separate terminals for powering the clock motor. These time switches can handle up to four loads per clock, providing a single control for easier installation. Each time switch comes with 7 ON and 7 OFF trippers, allowing for at least one ON/OFF operation each day.

Features

  • Different ON/OFF programs each day of the week
  • True 7-day load control with minimum ON/OFF time of 3-1/2 hours
  • Separate clock motor terminals for switching loads not on line voltage
  • Carry-over automatically rewinds when power resumes
  • Minimum of 16-hour carry-over for maintaining preset schedules during power failures
  • Available with Type 3R rated outdoor metal enclosure or Type 1 rated indoor metal in gray finish with separate grounding terminal
  • 40 A at 120 - 480 VAC (resistive), 40 A at 120/208/240/277 VAC (inductive), 40 A at 120/208/240/277 VAC (tungsten)
  • 2 hp, 24 FLA at 120 VAC, 5 hp, 28 FLA at 240 VAC (1 phase), 7-1/2 hp, 28 FLA at 208 VAC, 10 hp, 28 FLA at 240 VAC (3 phase) motor
  • 60 Hz
  • 3 W power
  • 1000 VA, 120-277 VAC per pole pilot duty
  • 14 - 8 AWG
  • 16 A, 277 VAC electronic ballast
  • 3-1/2 hr/7 days time duration
  • Without Carry-Over

Specification

Mounting Type
Wall
Number Of Poles
4
Series
T7000B
Temperature Rating
-40 to 130 deg F
Time Setting
3-1/2 hr - 7 Days
Type
Electromechanical
Voltage Rating
125 VAC
Application
Commercial, Industrial, Residential, Indoor and HVACR
Standard & Approvals
cCSAus Certified, cULus Listed, HVACR, RoHS Compliant
Amperage Rating
40 A
Dimensions
12-1/2 in H x 8-1/4 in W x 4 in D
Contact Form
4NO 4PST
Enclosure Type
NEMA 1
Horsepower
10 hp
