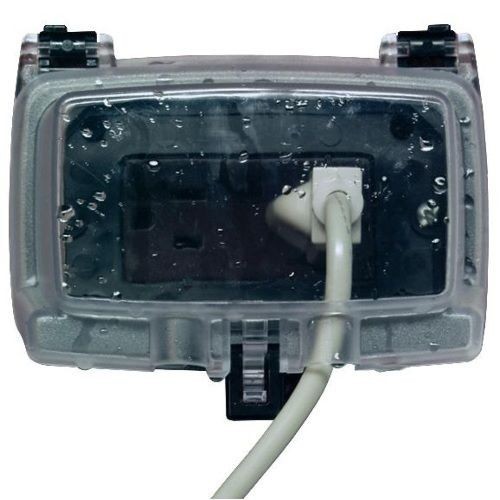

Intermatic® WP1010HC Heavy Duty Non-Metallic Weatherproof While-In-Use Cover, 4-1/4 in L x 5 in W x 3-1/8 in D, Receptacle Cover, Polycarbonate
Intermatic® WP1010HC Heavy Duty Non-Metallic Weatherproof While-In-Use Cover, 4-1/4 in L x 5 in W x 3-1/8 in D, Receptacle Cover, Polycarbonate
SKU: INTWP1010HC
Manufacturer Part Number: WP1010HC
UPC: 078275028098
Short Description
Features
- UV stabilized polycarbonate
- 3 patented inserts for GFCI, duplex, toggle or round receptacles
- Clear cover on most models
- Meets requirements for cold impact testing (-60 deg F)
- Pre-adhered gasket
- Neoprene-1/8 in thick gasket with slits for mounting screws
- 2 to 14 gauge or 1 to 12 gauge maximum cord size
- UV stabilized polycarbonate with two cord outlets 1/2 in wide by 9/16 in high
- Deep lid type
- 0.78 in exit port length
- Neoprene gasket
- Heavy Duty construction
Specification
| Length | 4-1/4 in |
|---|---|
| Material | Polycarbonate |
| Mounting Type | Surface |
| Number of Gangs | 1 |
| Number of Outlets | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | INTWP1010HC |
| Color | Clear |
| Depth | 79 mm |
| Diameter | 1/2 in |
| Series | WP1000C |
| Shape | Rectangle |
| Temperature Rating | -51 deg C |
| Type | Weatherproof |
| Standard & Approvals | UL Listed, CSA Certified, 2008 NEC 406.8 (B1), RoHS Compliant |
| Includes | Gasket, Mounting Screws, Base, Cover Assembly and Inserts, WP17 FlexiGuard Duplex and GFCI Inserts |
| Application | Industrial, Commercial, Manufacturing, Residential, Agricultural, Signage and Athletic Fields |
| Width | 5 in |
