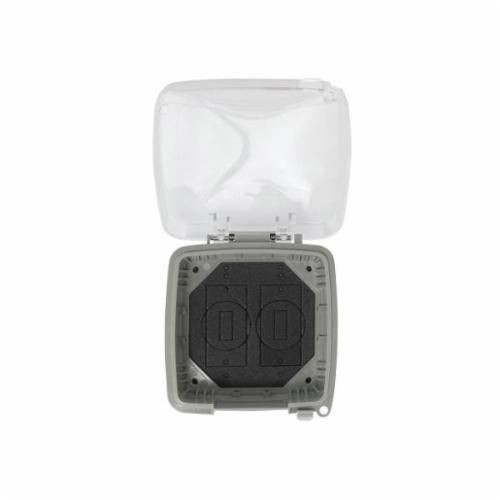

Intermatic® WP5220C Heavy Duty Non-Metallic Weatherproof While-In-Use Cover, 6-1/2 in L x 6-1/2 in W x 2-1/4 in D, Receptacle Cover, Polycarbonate

Selected WP5220CIntermatic® WP5220C Heavy Duty Non-Metallic Weatherproof While-In-Use Cover, 6-1/2 in L x 6-1/2 in W x 2-1/4 in D, Receptacle Cover, Polycarbonate
WP5220CIntermatic® WP5220C Heavy Duty Non-Metallic Weatherproof While-In-Use Cover, 6-1/2 in L x 6-1/2 in W x 2-1/4 in D, Receptacle Cover, Polycarbonate

Documents

Short Description

The WP5000 extra duty plastic series while-in-use covers are easy to install and shipped with a gasket, mounting screws, base and cover assembly, and inserts for a variety of applications.

Features

  • 6 inserts provided with all models that allow each model to meet multiple installations (up to 70 configurations)
  • Heavy duty UV stabilized polycarbonate construction ensures long lasting durability
  • Reinforced hinge pin - designed to exceed 40lb hinge hang/stress test
  • 12 lb impact test to ensure cover remains in-tact
  • Lockable hasp all models accept up to 0.25 in diameter shank
  • Meets requirements for cold impact testing (-60 deg F)
  • 1/8 in thick gasket with slits for mounting screws
  • Easy to install and shipped with a gasket, mounting screws, base and cover assembly, and inserts for a variety of applications
  • UV stabilized polycarbonate finish
  • Neoprene gasket
  • Heavy Duty construction

Specification

Length
6-1/2 in
Material
Polycarbonate
Mounting Type
Surface
Number of Gangs
2
Number of Outlets
2
Series
WP5000
Shape
Rectangle
Temperature Rating
-51 deg C
Type
Weatherproof
Width
6-1/2 in
Application
Industrial, Commercial, Manufacturing, Residential, Agricultural, Signage and Athletic Fields
Standard & Approvals
UL Listed, CSA Certified, 2014 NEC Article 406.9(B)(1), CEC Rule 26-702, NEMA 3R, RoHS Compliant
Color
Clear
Depth
57 mm
Includes
WP217 FlexiGuard Duplex and GFCI Inserts, Knockout
