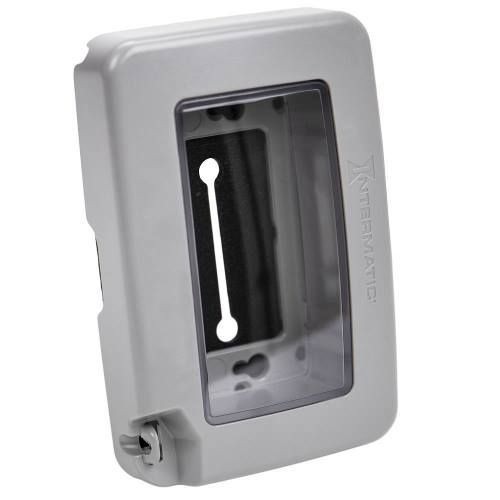

Intermatic® WP6000W 8-Configuration Extra Duty Low Profile Standard Weatherproof In-Use Cover, 5-1/2 in L x 3-3/4 in W x 1-1/2 in D, Receptacle Cover, Plastic
Intermatic® WP6000W 8-Configuration Extra Duty Low Profile Standard Weatherproof In-Use Cover, 5-1/2 in L x 3-3/4 in W x 1-1/2 in D, Receptacle Cover, Plastic
SKU: INTWP6000W
Manufacturer Part Number: WP6000W
UPC: 078275149915
Documents
Features
- 100% paintable surface
- Heavy duty UV stabilized polycarbonate cover, mounting base and inserts
- 1/8 in THK, neoprene gasket with slits for mounting screws
- Lockable hasp - all models accept up to 0.19 in Dia shank
- Impact rated - 12 lbf impact test to ensure cover remains intact
- New faster installation, pre-set for GFCI, no insert required
- Two inserts provided with all models that allow each model to meet multiple installations (up to 8-configuration)
Specification
| Insulation | Neoprene Gasket |
|---|---|
| Length | 5-1/2 in |
| Material | Plastic |
| Mounting Orientation | Horizontal/Vertical |
| Mounting Type | Surface |
| Number of Gangs | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | INTWP6000W |
| Color | White |
| Cover Type | Receptacle |
| Depth | 1-1/2 in |
| Shape | Rectangle |
| Type | 8-Configuration Extra Duty Low Profile Standard Weatherproof |
| Width | 3-3/4 in |
| Application | Outdoor Signage, Athletic Fields, Agricultural, Commercial and Residential Applications |
| Standard & Approvals | RoHS Compliant, CEC Section 26-702, NEC Article 406.9 (B)(1), 2014 NEC Article 314.15, UL Listed, cULus Listed, cCSAus Certified |
| Includes | Gasket, Mounting Screws, Base, Cover Assembly, Inserts |
