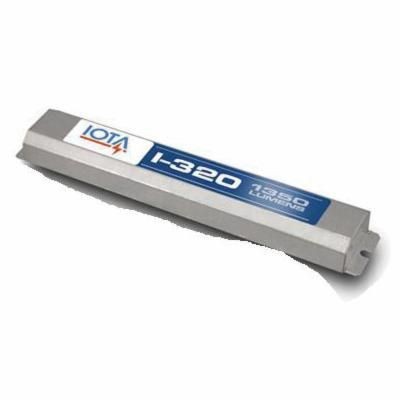

IOTA® I-320 AC Series Reduced Profile Emergency Ballast, Fluorescent Lamp, 14 to 54 W Lamp, 120/277 VAC, Instant/Rapid

Selected I-320IOTA® I-320 AC Series Reduced Profile Emergency Ballast, Fluorescent Lamp, 14 to 54 W Lamp, 120/277 VAC, Instant/Rapid
I-320IOTA® I-320 AC Series Reduced Profile Emergency Ballast, Fluorescent Lamp, 14 to 54 W Lamp, 120/277 VAC, Instant/Rapid

Documents

Short Description

The I-320 series AC fluorescent emergency ballast from IOTA engineering allows the same fixture to be used for both normal and emergency operation. In the event of a power failure, the I-320 switches to the emergency mode and operates one of the existing lamps for 90 minutes. The unit contains a battery, charger, and inverter circuit in a single can and can be mounted in the wireway or on top of the fixture. The I-320 can be used with most 2'-4' T8 and 2'-4' 14W to 54W T5 fluorescent lamps, with an initial output of up to 1350 lumens for one lamp. The I-320 utilizes AC output to ensure compatibility with new lamp technologies and features lamp selector leads for optimizing light output for designated lamp type. The I-320 delivers high performance in a slim design and is ideal for use in fixtures where ballast compartment space is limited. The I-320 is suitable for use in damp locations and in enclosed and gasketed fixtures.

Features

  • Time delay enhancement for compatibility with end of lamp life circuitry
  • Open circuit isolation protects unit when load is absent
  • Reduced profile design is ideal for smaller ballast compartments
  • AC output in emergency mode
  • Will cold start and operate all specified lamps
  • Long life high temperature recyclable NiCad battery
  • For use with switched or unswitched fixtures
  • Selectable lamp leads for optimizing light output for desired lamp type
  • Meets or exceeds all NEC, IBC and life safety code emergency lighting requirements
  • Most 2 to 4 ft single, bi-pin T8 fluorescent lamps and 2 to 4 ft 14 to 54 W T5 fluorescent lamps
  • 90 min emergency operation
  • (1) lamp up to 1350 lumens initial illumination
  • 24 hr recharge and 7 to 10 years life expectancy battery

Specification

Frequency Rating
60 Hz
Lamp Type
Fluorescent
Material
Galvanized Steel
Number of Lamps
1
Minimum Order Qty
1
Order Interval
1
Catalog ID
IOTI320TBTSM20
Dimensions
13 in L x 2.2 in W x 1.25 in H
Series
AC Series
Start Type
Instant/Rapid
Temperature Range
0 to 50 deg C
Type
Reduced Profile
Voltage Rating
120/277 VAC
Wattage
3.5 W
Application
For use in damp locations, plenum and in enclosed and gasketed fixtures
Standard & Approvals
UL Listed, cUL Listed, RoHS Compliant
Includes
Test Switch/Charge Indicator Accessory Kit
Lamp Wattage
14 to 54 W
Lamp Base Type
Bi-Pin Single
