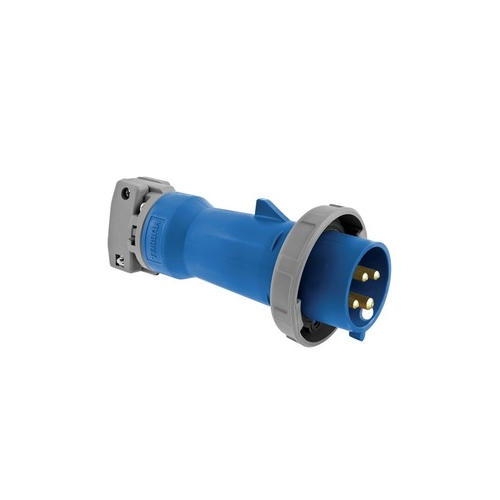

Wiring Device-Kellems HBL460P9W Watertight Pin and Sleeve Plug, 250 VAC, 60 A, 3 Poles, 4 Wires, Blue
Wiring Device-Kellems HBL460P9W Watertight Pin and Sleeve Plug, 250 VAC, 60 A, 3 Poles, 4 Wires, Blue
SKU: HWDHBL460P9W
Manufacturer Part Number: HBL460P9W
UPC: 783585404882
Features
- 3000 VAC minimum dielectric withstand voltage
- 8 - 2 AWG copper terminal accommodations
- 0.5 - 1.45 in cord-clamp range
- Rynite SST35 lock ring, cord clamps, gland cap
- High impact thermoset contact carrier and retainer
- Brass ground/phase pins
- Stainless steel terminal screws, assembly screws, cord-clamp screws
- Nickel plated brass clamp nut
- Zytel 801 nylon housing
- 3-phase
Specification
| Grade | Industrial |
|---|---|
| Material | Nylon |
| Number Of Poles | 3 |
| Number of Wires | 4 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Watertight |
| Voltage Rating | 250 VAC |
| Amperage Rating | 60 A |
| Dimensions | 4.49 in Dia x 10.15 in L |
| Color | Blue |
| Enclosure | IP67 |
| Application | For high ampacity connections |
| Standard & Approvals | UL 1682, 1686C2, E146033, CSA LR280C |
