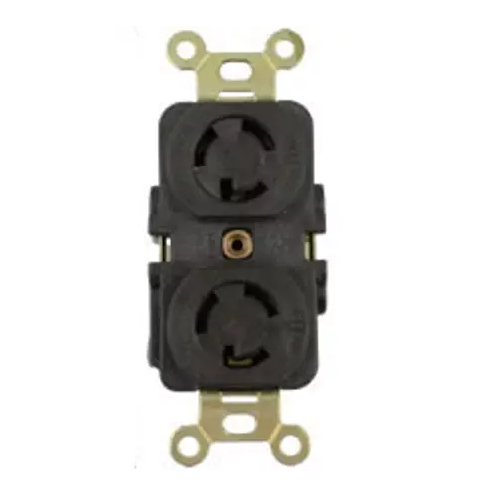

Wiring Device-Kellems HBL4750 Grounding Locking Receptacle With Cover, 277 VAC, 15 A, 2 Poles, 3 Wires, Brown
Wiring Device-Kellems HBL4750 Grounding Locking Receptacle With Cover, 277 VAC, 15 A, 2 Poles, 3 Wires, Brown
SKU: HWDHBL4750
Manufacturer Part Number: HBL4750
UPC: 783585002347
Documents
Features
- Reinforced thermoplastic construction
- Single-piece, all brass contacts
- Single point break-off tabs
- Mounting strap tabs lock the body and base together
- 0.062 in steel terminal clamp material
- NO 8-32 brass terminal screw material, NO 8-32 Brass (Green) ground screw material, 0.031 in brass contact spring, ground contact, 0.05 in brass bridge (mounting strap) material, brass rivet
- Stainless steel auto ground clip material
- Steel zinc plated mounting screw material
- RTP cover top material
- Withstand 2000 V minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- Terminals identified in accordance with UL498 (X, Y, Z, White, Green)
- UL94 VO for receptacles and inlets, HB or better for plugs and connectors
- Glass reinforced thermoplastic polyester base material
- Made of Thermoplastic Polyester
Specification
| Grade | Industrial |
|---|---|
| Material | Polyester |
| NEMA Rating | NEMA L7-15R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Color | Brown |
| Dimensions | 3.29 x 1.7 x 1.17 in |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Grounding |
| Voltage Rating | 277 VAC |
| Application | For heavy duty industrial applications |
| Standard & Approvals | UL Listed, CSA Certified |
| Horsepower | 2 hp |
| Catalog ID | HWDHBL4750 |
