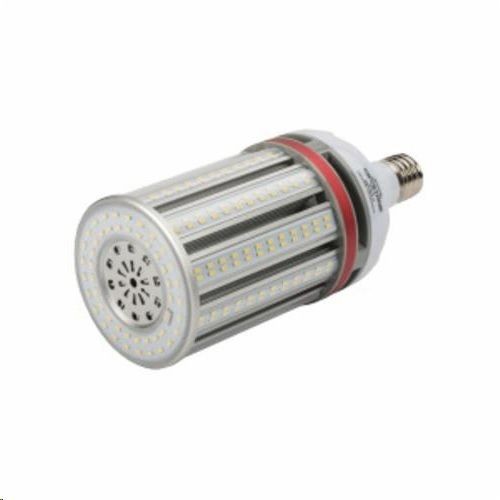

Keystone Technologies KT-LED100HID-EX39-840-D 800 DirectDrive LED HID Replacement Lamp, 100 W, EX39 Mogul LED Lamp, T, 14000 Lumens

Selected Keystone Technologies KT-LED100HID-EX39-840-D 800 DirectDrive LED HID Replacement Lamp, 100 W, EX39 Mogul LED Lamp, T, 14000 Lumens
Keystone Technologies KT-LED100HID-EX39-840-D 800 DirectDrive LED HID Replacement Lamp, 100 W, EX39 Mogul LED Lamp, T, 14000 Lumens

Short Description

Keystone DirectDrive LED HID replacement lamps are the ideal way to upgrade existing HID fixtures to the latest in LED technology. Simply bypass the existing ballast by cutting the wires and connecting the 120 to 277 VAC line voltage directly to the sockets. No ballast or external driver is required. These vertical corn cob LED lamps feature a 360 deg beam angle to produce Omni directional light output. Choosing LED replacement bulbs for HID fixtures is an easy way to increase lighting efficiency. Corn cob LED lamps use significantly less wattage to deliver comparable lumens as conventional metal halide lamps. Keystone’s LED HID replacements also provide better color rendering than metal halide lamps.

Features

  • IP64 rated - integrated heat sink quickly dissipates heat and guides water intrusion out of the lamp
  • Integral driver, eliminates the need for external driver or ballast - includes 6 kV surge protection
  • Non-dimmable - do not dim
  • Environmentally friendly, no mercury used
  • Suitable for use in fully enclosed fixture
  • Active cooling technology - when internal thermal sensor reaches 84 deg C, lamp power reduces to 80% of max, when sensor cools to 65 deg C lamp powers backup to 100% rated power

Specification

Lamp Base
EX39 Mogul
Lamp Type
LED
Lumens
14000 Lumens
Minimum Order Qty
1
Order Interval
1
Amperage Rating
0.93/0.4 A
Average Life
50000
Beam Angle
360
Catalog ID
KTBKTLED100HIDEX39840D
Color
Cool White
Color Rendering Index (CRI)
>83
Color Temperature
4000
Designation
KT-LED100HID-EX39-840-D
Dimensions
5.12 in Dia x 12.57 in L
Series
800 DirectDrive
Start Type
Instant
Voltage Rating
120 to 277 V
Wattage
100 W
Standard & Approvals
UL Listed, DLC Listed, cULus Listed, RoHS Compliant
Shape
T
