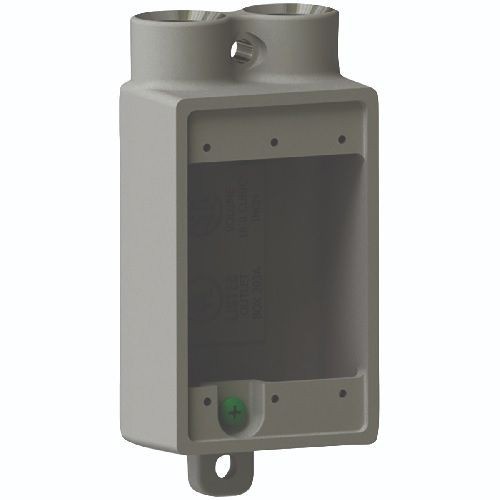

Killark® FSS-1 F Series Type FSS Shallow Cast Device Box, Copper-Free Aluminum, 18 cu-in Capacity, 1 Gangs, 1 Outlets, 5-1/2 in H x 2-7/8 in W x 2 in D
Killark® FSS-1 F Series Type FSS Shallow Cast Device Box, Copper-Free Aluminum, 18 cu-in Capacity, 1 Gangs, 1 Outlets, 5-1/2 in H x 2-7/8 in W x 2 in D
SKU: KLRFSS-1
Manufacturer Part Number: FSS-1
UPC: 783936190556
Documents
Short Description
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Suitable for use in wet locations when used with gasket covers
- For use with FS-style covers
- Accommodates wiring devices and provides opening to splice, tap or pull conductors
- Electrostatically applied powder coating
- Without knockout
Specification
| Hub Size | 1/2 in |
|---|---|
| Hub Style | Tapered Threaded |
| Material | Copper-Free Aluminum |
| Mounting Type | Lug |
| Number of Gangs | 1 |
| Number of Outlets | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 18 cu-in |
| Catalog ID | KLRFSS-1 |
| Color | Gray |
| Dimensions | 5-1/2 in H x 2-7/8 in W x 2 in D |
| Enclosure Type | NEMA FB-1 |
| Finish | Powder Coated |
| Series | F Series |
| Application | For use to accommodates wiring devices and provides opening to splice, tap or pull conductors and used to provide access to conductors for maintenance and future system changes, standard and hostile locations |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA C22.2 No. 18 File No. LR11852, Federal Specification No. W-C-586D, UL 514A File No. E3397, PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Type | Type FSS Shallow |
