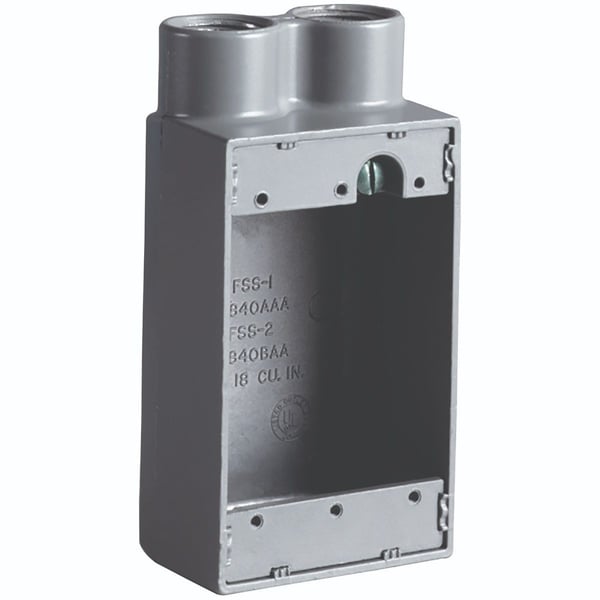

Killark® FSS-2 Cast Device Box, Copper Free Aluminum, 18 cu-in Capacity, 1 Gang, 1 Outlet, 5-1/2 in H x 2-7/8 in W x 2 in D

Selected Killark® FSS-2 Cast Device Box, Copper Free Aluminum, 18 cu-in Capacity, 1 Gang, 1 Outlet, 5-1/2 in H x 2-7/8 in W x 2 in D
Killark® FSS-2 Cast Device Box, Copper Free Aluminum, 18 cu-in Capacity, 1 Gang, 1 Outlet, 5-1/2 in H x 2-7/8 in W x 2 in D

Documents

Short Description

F series device boxes accommodate wiring devices and provides opening to splice, tap or pull conductors. It provides access to conductors for maintenance and future system changes. Suitable for use in wet locations when used with gasket covers. All devices are offered in our copper-free aluminum with electro-statically applied powder coating. Some devices are configured for our tri-coat protected iron.

Features

  • Tapered threads (NPT with integral bushings)
  • Internal grounding screw
  • Suitable for use in wet locations when used with gasket covers
  • Copper-free aluminum (less than 4/10 of 1%)

Specification

Hub Size
3/4 in
Material
Copper Free Aluminum
Mounting Type
Lug
Number of Gangs
1
Number of Outlets
1
Series
FSS
Shape
Shallow
Dimensions
5-1/2 in H x 2-7/8 in W x 2 in D
Capacity
18 cu-in
Color
Gray
Enclosure Type
NEMA FB-1
Finish
Powder Coated
Standard & Approvals
CSA C22.2 No 18 File No LR11852, Federal Specification W-C-586D, NEMA: FB-1, UL 514A File No E3397
Application
Accommodates wiring devices and provides opening to splice, tap, or pull conductors and provide access to conductors for maintenance and future system changes
