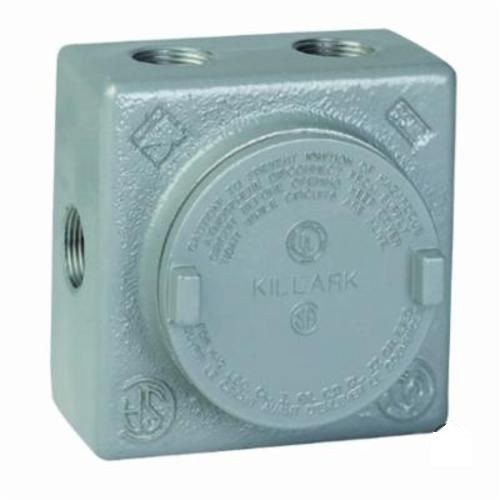

Killark® GR Conduit Outlet Box With Blank Cover, 1/2 in Hub, Copper-Free Aluminum, Painted
Killark® GR Conduit Outlet Box With Blank Cover, 1/2 in Hub, Copper-Free Aluminum, Painted
SKU: KLRGRSS-1
Manufacturer Part Number: GRSS-1
UPC: 783936230122
Features
- GR series are the go to outlet bodies for multiple hub configurations and are installed to protect conductors in threaded rigid conduit
- Internal hubs
- Compact design and multiple hub configurations
- Furnished with internal ground screw
- Cast-in brackets on cover for use with breaker-bar tools
- Finished with seven internal hubs
Specification
| Hub Size | 1/2 in |
|---|---|
| Material | Copper-Free Aluminum |
| Finish | Painted |
| Capacity | 29 cu-in |
| Standard & Approvals | CSA LR11716, Class I, Div. 1 and 2, Groups C,D Class II, Div. 1 and 2, Groups E,F,G Class III, UL E10514 |
| Series | GR |
| Mounting Type | Lug |
