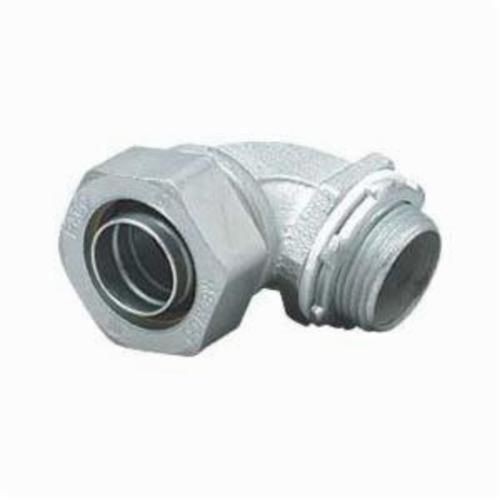

Killark® K0759 K Series Bare Non-Insulated Liquidtight Connector, 3/4 in Trade, 90 deg, Malleable Iron/Steel, Electro-Plated Zinc
Killark® K0759 K Series Bare Non-Insulated Liquidtight Connector, 3/4 in Trade, 90 deg, Malleable Iron/Steel, Electro-Plated Zinc
SKU: KLRK0759
Manufacturer Part Number: K0759
UPC: 783936991177
Documents
Features
- Split nylon gland-ring - split for easy installation and greater compression
- Digging locknut
- Bare insulation
- Reusable
- 5/8 in thread length
Specification
| Material | Steel/Malleable Iron |
|---|---|
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Angle | 90 deg |
| Dimensions | 1-15/16 in L x 1-3/8 in W x 1-19/32 in H |
| Finish | Zinc Electroplated |
| Series | K Series |
| Suitable For Use With | Metallic and Non-Metallic Conduit |
| Trade Size | 3/4 in |
| Type | Non-Insulated |
| Application | To Seal Out Water, Oil and Dust in Applications for Food Processors, Beverage and Chemical Plants, Plastics Fabricators and Machine Shops, Hazardous locations |
| Standard & Approvals | UL E22699, CSA LR70873, RoHS Complaint |
| Color | Glossy Gray |
| Catalog ID | KLRK0759 |
| Includes | Sealing O-Rings |
