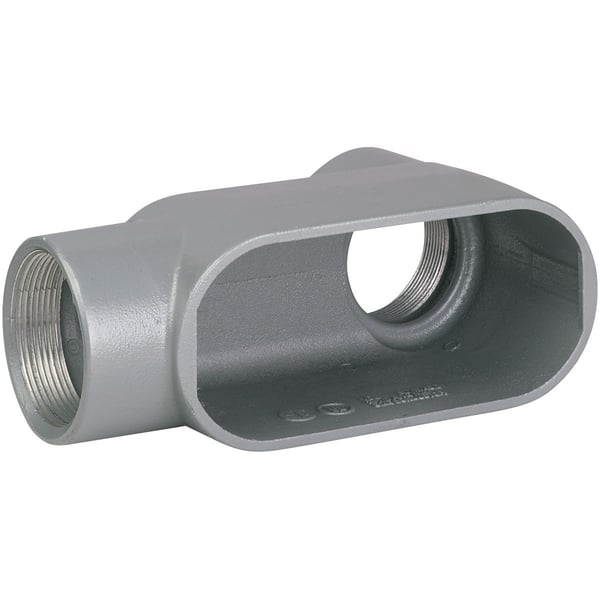

Killark® Duraloy® 7 LB77 Type LB Conduit Body, 2-1/2 in Hub, Form 7 Form, 131.5 cu-in Capacity, Iron, Tri-Coated
Killark® Duraloy® 7 LB77 Type LB Conduit Body, 2-1/2 in Hub, Form 7 Form, 131.5 cu-in Capacity, Iron, Tri-Coated
SKU: KLRLB77
Manufacturer Part Number: LB77
UPC: 783936011066
Documents
Short Description
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal
- Suitable for wet locations when used with gaskets
- High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
- Innovative spring clip design for installation ease and repeat usage
- For use with threaded rigid conduit steel or aluminum
- Flat back design for greater wiring capacity and mounting stability
- Superior corrosion protection tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
- Suitable for use in hazardous location applications when installed according to NEC articles 501.10(b), class I, division 2, (suitable for use in class I zone 2 applications) 502.10 and 503.10
- Tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
Specification
| Hub Size | 2-1/2 in |
|---|---|
| Material | Iron |
| Number of Hubs | 2 |
| Type | Type LB |
| Application | For to provide access to conductors for pulling, splicing and maintenance and threaded for rigid conduit and IMC |
| Standard & Approvals | PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Capacity | 131.5 cu-in |
| Color | Gray |
| Connection Type | Thread |
| Finish | Tri-Coated |
| Form | Form 7 |
| Dimensions | 10-15/16 in L x 4-3/8 in W x 6-3/16 in H |
