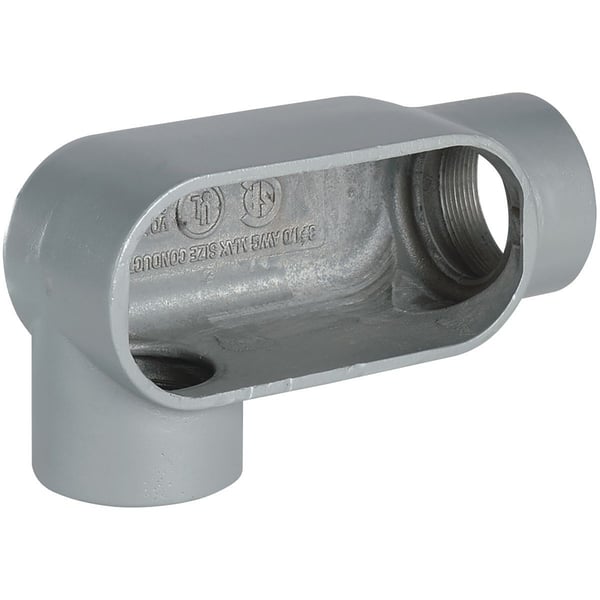

Killark® Duraloy® 7 LR67 Type LR Conduit Body, 2 in Hub, 7 Form, 48 cu-in Capacity, Iron, Tri-Coated

Selected LR67Killark® Duraloy® 7 LR67 Type LR Conduit Body, 2 in Hub, 7 Form, 48 cu-in Capacity, Iron, Tri-Coated
LR67Killark® Duraloy® 7 LR67 Type LR Conduit Body, 2 in Hub, 7 Form, 48 cu-in Capacity, Iron, Tri-Coated

Documents

Short Description

Killark® is known for providing individual client solutions to complex environmental requirements. Reliable and proven technology, coupled with value added engineering enables lower total installation costs with a lifetime of savings.

Features

  • Intermateability UL listed and CSA certified interchangeability with competitive products
  • Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 seal
  • High quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
  • Suitable for wet locations when used with gasketed covers
  • Innovative spring clip design for installation ease and repeat usage
  • Smooth integral wire bushings protects cable from damage when wires are pulled through opening
  • For use with threaded rigid conduit steel or aluminum
  • Ten standard hub configurations
  • Flat back design for greater wiring capacity and mounting stability
  • Tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating

Specification

Hub Size
2 in
Material
Iron
Number of Hubs
2
Minimum Order Qty
1
Order Interval
1
Capacity
48 cu-in
Catalog ID
KLRLR67
Color
Gray
Connection Type
Thread
Dimensions
8-1/4 in L x 3-1/8 in W x 4-1/4 in H
Enclosure
NEMA 3
Finish
Tri-Coated
Form
7
Type
Type LR
Application
For pulling, splicing and maintenance
Standard & Approvals
UL File No. E3397, CSA LR11852
