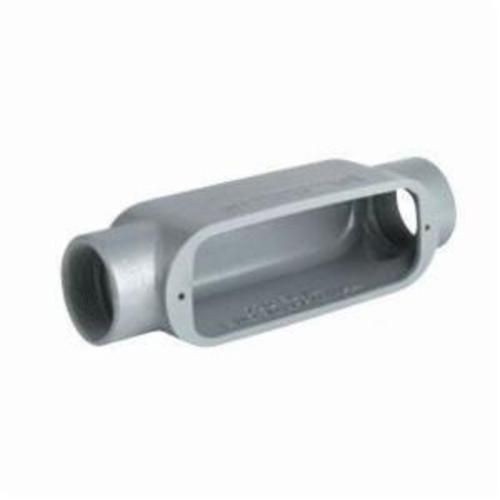

Killark® Duraloy® 5 OC-8 O Series Type-C Conduit Body With Cover and Gasket, 3 in Hub, 181 cu-in Capacity, Aluminum, Powder Coated
Killark® Duraloy® 5 OC-8 O Series Type-C Conduit Body With Cover and Gasket, 3 in Hub, 181 cu-in Capacity, Aluminum, Powder Coated
SKU: KLROC-8
Manufacturer Part Number: OC-8
UPC: 783936450087
Documents
Features
- For use with rigid/IMC conduit
- For wet locations when used with gasketed covers
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b), Class I, Div. 2, (Suitable for use in Class I Zone 2 applications) 502.10 and 503.10
- Raintight when used with gasketed covers
- Interchangeable with competitive products
- Stainless steel screws on stamped and cast covers
Specification
| Hub Size | 3 in |
|---|---|
| Material | Aluminum |
| Number of Hubs | 2 |
| Series | O-Series |
| Type | Type C |
| Application | For pulling, splicing, and maintenance |
| Standard & Approvals | UL File No E3397 Listed, CSA File No LR11852 Certified, Federal Specification W-C-586D/A-A 50563 |
| Dimensions | 15-1/8 in L x 4-3/8 in W x 4-3/4 in H |
| Capacity | 181 cu-in |
| Color | Gray |
| Connection Type | Tapered NPT |
| Finish | Electrostatically Applied Powder Coated |
