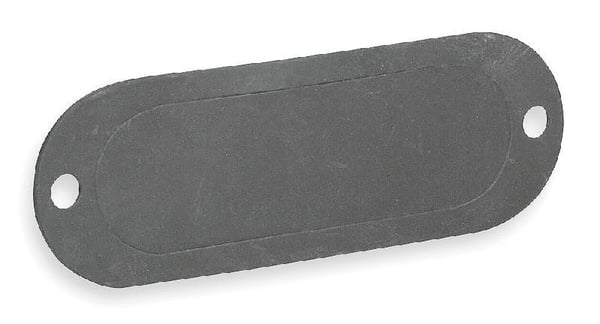

Killark® OL-45-RG Conduit Body Gasket, 1-1/4 to 1-1/2 in Hub, For Use With O Series/Duraloy® 5 Fitting, Neoprene

Selected Killark® OL-45-RG Conduit Body Gasket, 1-1/4 to 1-1/2 in Hub, For Use With O Series/Duraloy® 5 Fitting, Neoprene
Killark® OL-45-RG Conduit Body Gasket, 1-1/4 to 1-1/2 in Hub, For Use With O Series/Duraloy® 5 Fitting, Neoprene

Documents

Short Description

Killark is known for providing individual client solutions to complex environmental requirements. Reliable and proven technology, coupled with value added engineering enables lower total installation costs with a lifetime of savings.

Features

  • Suitable for wet locations when used with gasketed covers
  • Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b), Class I, Div. 2, (Suitable for use in Class I Zone 2 applications) 502.10 and 503.10.
  • Black color

Specification

Hub Size
1-1/4 - 1-1/2 in
Material
Neoprene
Series
DURALOY 5
Suitable For Use With
O Series Fittings
Standard & Approvals
UL E3397, CSA LR11852, W-C-586D/A-A 50563, RoHs Compliant
Dimensions
7-1/4 in L x 2-1/2 in W x 1/8 in H
