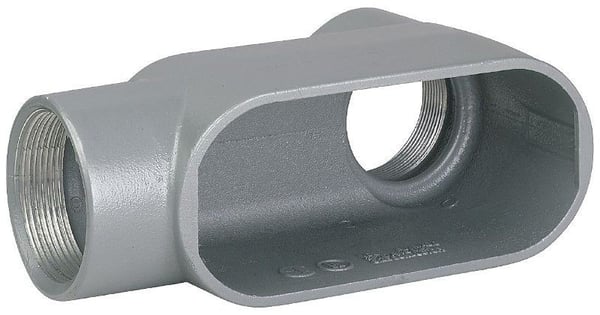

Killark® Duraloy® 5 OLB-3 O Series Type LB Conduit Body, 1 in Hub, 7 Form, 12 cu-in Capacity, Aluminum, Powder Coated
Killark® Duraloy® 5 OLB-3 O Series Type LB Conduit Body, 1 in Hub, 7 Form, 12 cu-in Capacity, Aluminum, Powder Coated
SKU: KLROLB-3
Manufacturer Part Number: OLB-3
UPC: 783936490274
Documents
Short Description
Features
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Malleable iron suitable for use in concrete
- Interchangeable with competitive products
- Stainless steel screws on stamped and cast covers
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b), Class I, Div. 2, (Suitable for use in Class I Zone 2 applications) 502.10 and 503.10
- To provide access to conductors for pulling, splicing and maintenance
- Electrostatically Applied Powder Coated finish
- Copper Free Aluminum
Specification
| Hub Size | 1 in |
|---|---|
| Material | Aluminum |
| Number of Hubs | 2 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 12 cu-in |
| Catalog ID | KLROLB-3 |
| Color | Gray |
| Connection Type | Threaded |
| Dimensions | 6-5/8 in L x 1-7/8 in W x 2-29/32 in H |
| Finish | Powder Coated |
| Form | 7 |
| Series | O/DURALOY 5 |
| Type | Type LB |
| Application | For Rigid/IMC Conduit |
| Standard & Approvals | UL E3397 Listed, CSA File NO LR11852 Certified, Federal Specification W-C-586D/A-A 50563, RoHS Compliant |
